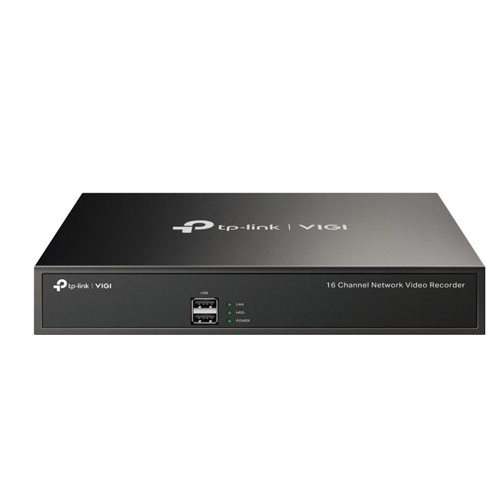

16 Channel Network Video Recorder MODEL: VIGI NVR1016H
Overview
VIGI Surveillance Solution
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business that you've worked hard to build—whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
Technical parameters
Network Topology
1. Power Supply
2. AUDIO IN and AUDIO OUT for Two-Way Audio
3. HDMI and VGA Ports for Video Output
4. LAN Port for Ethernet Connection
5. Two USB Ports for Mouse, Keyboard, or Mobile Hard Disk Connection
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing Administrator, Inc.
For support and warranty, please visit http://www.tp-link.com/support Specifications are subject to change without notice. TP-Link and VIGI are trademarks of TP-Link Corporation Limited. Other brands
and product names are trademarks or registered trademarks of their respective holders. Copyright ©2022 TP-Link Corporation Limited. All rights reserved. † ‡ HDD is not included.
Some features may operate sub-optimally due to compatibility issues. For best performance, we recommend using VIGI NVR with
VIGI cameras. △A hard disk drive (not included) must be installed for operation.
Specifications
| Models | VIGI INVR1016H | |
| Video Input | IP Video Input | 16-Channel |
| Up to 8 MPResolution | ||
| Network | Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps | |
| Recording Resolution | 8 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF | |
| Video Output | HDMI Output Resolution | 1 Channel Resolution 3840x2160/30Hz,1920x1080/60Hz 1680x1050/60Hz 1440x900/60Hz,1280x1024/60Hz, 1280x720/60Hz |
| VGAOutput Resolution | 1 Channel Resolution: 1920x1080/60Hz,1680x1050/60Hz 1440x900/60Hz 1280x1024/60Hz,1280x720/60Hz | |
| Decoding Format | H265+/H.265/H264+/H.264 | |
| Decoding | Live View/Playback Resolution | 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel | |
| Capability | 2-ch 4-ch@4MP.8-ch@2MP | |
| Network Management | Network Protocols | TCRNP,DHCP. DNS,NTP,UPnP |
| Hard Disk | SATA | 1 SATA Interface |
| Capacity | Up to DTB | |
| External Interface | Network Interface | RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | USB 20 | |
| Power Supply | 12VDC/15A | |
| Genneral | Working Temperature | -10~55°C |
| Product Dimensions | 246.2x 148.2x45mm | |
| Product Weight | 578.5g |
