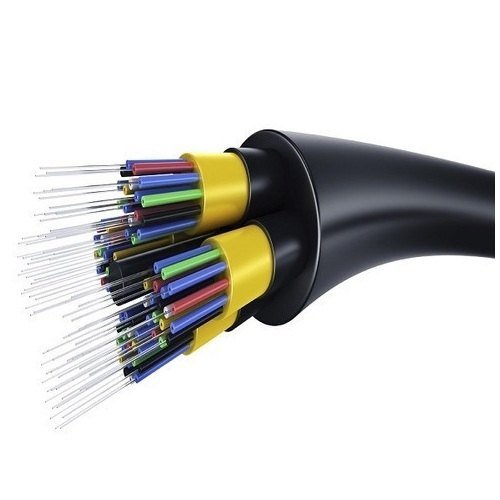

24 Non Armured OFC
24 Non Armured OFC
Technical parameters
| SL.No. | PARAMETER | UNIT | SPECIFICATIONS |
| 1 | TYPE OF CABLE | 24 MULTI TUBE NON ARMOURED OPTICAL FIBER CABLE | |
| 2 | FIBER | G6520 | SINGLEMODE FIBER OR MULTIMODE FIBER |
| al | FIBER SIZE | um | 9/125/250 50/125/250 425/125/250 |
| b) | No. OF FIBERS/LOOSE TUBE | No. | 12F in each tube |
| c) | FIBER IDENTIFICATION | ||
| FIBER COLOURS FOR 12F BUNDLE | No. | BLUE, ORANGE, GREEN & BROWN GREY WHITE,REQ BLACK VIOLET, PINK & AQUA-IN BLUE BINDER | |
| FIBER COLOURS FOR 12F BUNDLE | No. | BLUE ORANGE GREEN & BROWN, GREY WHITE,RED BLACK VIOLET, PINK & AQUA IN ORANGE BINDER | |
| 3 | OPTICAL PARAMETERS | ||
| FOR SM | |||
| ATTENUATION @ 1310nm | dB/Km | <0.33 | |
| ATTENUATION # 1550nm | dB/Km | 0.23 | |
| WAVELENGTH | |||
| 1310nm | db/km | 0.35 | |
| 1550mm | db/km | 0.23 | |
| 1625mm | db/km | 0.21 | |
| 4 | LOOSE TUBE / TIGHT BUFFER | LOOSE TUBE | |
| a) | MATERIAL | PBTP | |
| b) | No. OF LOOSE TUBES | No. | 2 |
| c) | DIAMETER (Nominal) | mm | 4.0 |
| d) | COLOUR OF LOOSE TUBE | NATURAL | |
| e) | SEQUENCE OF ELEMENTS IN CORE | NA | |
| f) | LOOSE TUBE GEL | THIXOTROPIC GEL | |
| 5 | JACKETING | ||
| a) | MATERIAL | HOPE | |
| b) | COLOUR | BLACK | |
| c) | NOMINAL THICKNESS | mm | 1.50 |
| d) | OVERALL DIAMETER (NOMINAL) | MM | 8MM |
| 6 | STRENGTH MEMBERS | YES | |
| al | TYPE | FRP ROD | |
| b) | DIAMETER | mm | 1 |
| c) | NUMBER | No. | 02 |
| 7 | Mechanical Tea | ||
| a) | Tensile Strength | Approx 400 Newton | |
| b) | Bending Redius | 150 | |
| c) | Crushing | 700 Newton/100mm | |
| . | Torsion | 160 | |
| a | Environmental Performance | ||
| a) | Installation | Min-20/Max +70 Degree | |
| b) | Service | Min-20/Max +70 Degree | |
| c) | Storage | Min-20/Max +70 Degree | |
| 9 | CABLE WEIGHT (NOMINAL) | Kg/Km | 40 |
| 10 | STANDARD LENGTH | Mtrs | AS PER REQUIREMENT OF CUSTOMER |
| 11 | TYPE OF PACKING | WOODEN DRUM |
