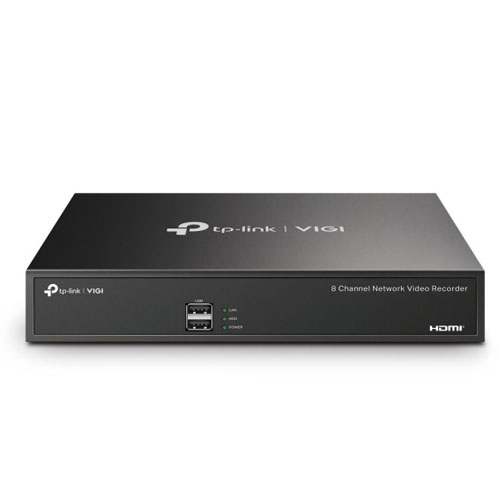

8 Channel Network Video Recorder MODEL: VIGI NVR1008H
Overview
VIGI Surveillance Solution
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business that you've worked hard to build—whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
Technical parameters
Network Topology
1. Power Supply
2. AUDIO IN and AUDIO OUT for Two-Way Audio
3. HDMI and VGA Ports for Video Output
4. LAN Port for Ethernet Connection
5. Two USB Ports for Mouse, Keyboard, or Mobile Hard Disk Connection
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos
are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
HIGH DEFINITION MULTIMEDIA INTERFAICE
1. Power Supply
2. AUDIO IN and AUDIO OUT for Two-Way Audio
3. HDMI and VGA Ports for Video Output
4. LAN Port for Ethernet Connection
5. Two USB Ports for Mouse, Keyboard, or Mobile Hard Disk Connection△
Network Topology
HDD is not included.
Some features may operate sub-optimally due to compatibility issues. For best performance, we recommend using VIGI NVR with VIGI cameras.
A hard disk drive (not included) must be installed for operation
Specifications
| NVR | |||
| Product Model | VIGI NVR1008H | ||
| Video and Audio | |||
| IF | Video Input | 8-Channel | |
| Incoming Bandwidth | 80 Mops | ||
| Outgoing Bandwidth | 60 Mops | ||
| HDMI | Output Resolution | 1 Channel Resolution 3840 160/30Hz 1920 x 1080/60Hz, 1680* 1050/60Hz. 1440 900/60Hz. 1280 1024/60Hz. 1280 720/60Hz | |
| VGA | Output Resolution | 1 Channel Resolution 1920 1080/60Hz 1680x 1050/60Hz, 1440 x 900/60Hz 1280 1024/60Hz 1280 720/60Hz | |
| Video | Output Mode | HDMV/VGA Simutaneous Output | |
| Multi-View Display | 1/4/6/8 | ||
| Decoding | |||
| Audio Compression | G711A/G.711U/G.726 | ||
| Video | Compression | H265+/H.265/H264+/H.264 | |
| Record Resolution | 8MP/5 MP/4MP/3MP/ /VGA/4CIF/DCIF/ 2CIF/CIF/QCIF | ||
| Synchronous Playback | 8-Channel | ||
| Capability | 2-ch@8MP.4-ch@4MP.8-ch@2MP | ||
| Record Management | |||
| Manual Recording | |||
| Record Mode | Scheduling Recording | ||
| . Motion Detection Recording | |||
| Instant Playback | |||
| - Regular Playback | |||
| Playback Mode | . Tag Playback | ||
| - Event Playback | |||
| Regular Backup | |||
| Backup Mode | Video Clip Backup | ||
| Play | |||
| Pause | |||
| Stop | |||
| Fast Forward | |||
| Fast Backward | |||
| Play By Frame | |||
| Playback Function | Full Screen | ||
| VideoClip | |||
| *Export ab | |||
| Digital Zoom | |||
| LockRecording | |||
| Audio Orvort | |||
| Network | |||
| Network Protocols | UPhP(Plug and Play NTP (Network Timing | ||
| Interoperability | ONMF, CG | ||
| Mobile Phone Access | Android IOS | ||
| Browser | Chrome (57%) Firefox 62+) Edge(91-) | ||
| External Interface | |||
| Network Interface | 1,RJ+45 10/100 Mops Ethernet interface | ||
| USB Interface | 2*USB 20 | ||
| Audio Interface | 1,Audioir 1. Audio Out | ||
| Alarm InvOut | N/A | ||
| Serial Interface | N/A | ||
| Power | 1. DC Jack | ||
| Reset Button | 1 | ||
| Speaker | N/A | ||
| SATA | N/A | ||
| HDM | 1 | ||
| VGA | 1 | ||
| Hard Disk | |||
| SATA | 1 SATA Interface | ||
| Capacity | Up to 10TB Capacity forEachHDO | ||
| Alarm | |||
| Motion Detection | |||
| Video Tampering | |||
| Line-Crossing Detection | |||
| -Intrusion Detection | |||
| General Alarm | -Region Entering Detection | ||
| -Region Exiting Detection | |||
| Object AbardonedRemont Detection | |||
| Vehicle Detection | |||
| Human Detection | |||
| Smart Frame | |||
| Video Loss | |||
| Name | Offine and P Contict | ||
| Anomaly | DiskException | ||
| - LoginException | |||
| Recording | |||
| . White Light Alam | |||
| Name Linkage | Buzzer | ||
| Log | |||
| Audible Alarm | |||
| General | |||
| - . VIGI Network Video Recorder Power Adaptar | |||
| Package Contents | HDO Screws | ||
| Mouse Rubber Fest - Quick Installation Guide | |||
| Power Supply | DC 12W1.5A | ||
| Max Power Date | 4.25W | ||
| Working Temperature | NNR-10-55°C | ||
| - Power Adapter:0=40*C | |||
| Storage Temperature | +40-70°C | ||
| Working Humidity | 10%6-00% RH Non-Condensing | ||
| Storage Humidity | 10%-90% RH Non-Condensing | ||
| ProductDimensions (w. H) | 246.2x1482*45 mm | ||
| Net Weight | 0.59kg | ||
| Gross Weight | 0.95kg | ||
| Certification | CE,EAC,UKCA RCM Siman BSML VCC FCCJC HOME |
