Connect Faster & Easier Than Ever E/GPON (XPON) ONU
Product Description
UB5010 GW dual-mode ONU supports two mode (EPON / GPON) accesses. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON/EPON adaptive access.
UB5010 GW features high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiber-home/Alcatel-Lucent. It provides a perfect terminal solution and futureoriented service supporting capabilities for FTTH deployment.

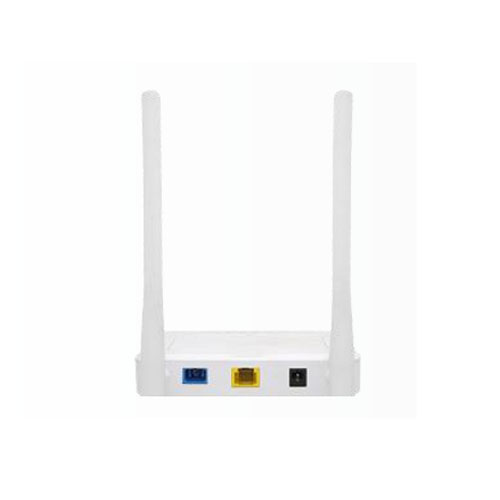

 ONU.jpg)
Technical parameters
MAIN FEATURES
In compliant with3ah and ITU – T G.984 standard
Support ONU auto-discovery/Link detection/remote upgrade of software
Meet 11 b/g/ntechnical standards
Support VLAN transparent, tag configuration
Support multicast function
Support DHCP/Static/PPPOE internet mode
Support port-binding
Support OAM/OMCI+TR069 remote management
Support data encryption and decryption function
PRODUCT FEATURES AND SPECIFICATIONS
UB5010 GW
| EPON/GPON Interface | Ethernet Port (LAN) |
| » SC/UPC single mode single fiber | » 1*GE auto-negotiation RJ45 ports |
| » GPON：FSAN G.984.2 standard, Class B+ | » Full/half duplex mode |
| » EPON：1000BASE-PX20+ symmetric | » RJ45 connector |
| » GPON：2.488Gbps/1.244Gbps downstream/upstream | » Auto MDI/MDI-X |
| » EPON：1.25Gbps downstream/upstream | » 100m distance |
| » Wavelength: Transmit: 1310nm Receiver: 1490nm | Physical Features |
| » Receiving sensitivity: GPON：-28dBm EPON：-27dBm | Power |
| » Saturated power: GPON：-8dBm EPON：-3dBm | » External 12V/0.5A DC power supply adapter |
| » Transmitting power: GPON：0.5～5dBm EPON:0～4dBm | » Power consumption: <3W |
| Management | Physical Specifications |
| Management Mode | » Item Dimension：125mm(L) x80mm(W) x28mm (H) |
| » WEB, Telnet | » Item Net Weight：about 106g |
| Network Management | Environmental Specifications |
| Management Function | » Operating temperature: 0 to 40ºC |
| » Status monitor, Configuration management, | » Operating humidity: 10% to 90 %( Non-condensing) |
| Alarm management, Log management | Power Interface |
| » 12V DC Power supply | |
| WIFI Specification | |
| Performance Parameters | |
| Operating Mode: Router or bridge | Modulation mode |
| Technical standard: IEEE802.11b/g/n | 11b：DSSS：DBPSK (1Mbps), DQPSK(2Mbps), |
| Frequency: 2.412 ~ 2.472 GHz | CCK (5.5/11Mbps) |
| Antenna gain: 5dBi | 11g：OFDM: |
| Support rate | BPSK(6/9Mbps), QPSK(12/18Mbps), |
| 802.11b: 1, 2, 5.5, 11Mbps | 16QAM(24/36Mbps) Q64QAM(48/54Mbps) |
| 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps | 11n：MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM |
| 802.11n: max rate 300Mbps | Receive sensitivity |
| Channel: | 11Mbps:≤-90dBm |
| 2.4GHz Channel：1,2,3,4,5,6,7,8,9,10,11,12,13 | 54 Mbps:≤-76dBm |
| Transmit power : 802.11n: 17dBm | HT20 MCS7:≤-73dBm |
| Encryption mode: AES, TKIP, WPA, WPA2, | HT40 MCS7:≤-70dBm |
| WPA-PSK/WPA2-PSK | P R O D U C T D A T A S H E E T |
