Connect Faster & Easier Than Ever E/GPON (XPON) ONU UB5010 G
Product Description :
UB5010 G dual-mode ONU supports two mode (EPON / GPON) accesses. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON/EPON adaptive access.
UB5010 G features high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiber-home/Alcatel-Lucent. It provides a perfect terminal solution and future[1]oriented service supporting capabilities for FTTH deployment.

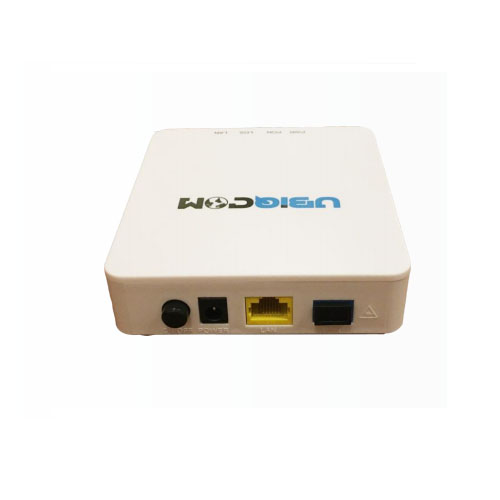

 ONU UB5010 G.jpg)
Technical parameters
MAIN FEATURES :
In compliant with 3ah and ITU – T G.984 standard
Support ONU auto-discovery/Link
detection/remote upgrade of software
Support AES encryption and decryption
Support power-off alarm function ,easy for link problem detection
PRODUCT FEATURES AND SPECIFICATIONS
UB5010 G XPON ONU
| EPON/GPON Interface | Ethernet Port (LAN) |
| » SC/UPC single mode single fiber | » 1*GE auto-negotiation RJ45 ports |
| » GPON：FSAN G.984.2 standard, Class B+ | » Full/half duplex mode |
| » EPON：1000BASE-PX20+ symmetric | » RJ45 connector |
| » GPON：2.488Gbps/1.244Gbps downstream/upstream | » Auto MDI/MDI-X |
| » EPON：1.25Gbps downstream/upstream | » 100m distance |
| » Wavelength: Transmit: 1310nm Receiver: 1490nm | Physical Features |
| » Receiving sensitivity: GPON：-28dBm EPON：-27dBm | Power |
| » Saturated power: GPON：-8dBm EPON：-3dBm | » External 12V/0.5A DC power supply adapter |
| » Transmitting power: GPON：0.5～5dBm EPON:0～4dBm | » Power consumption: <3W |
| Management | Physical Specifications |
| Management Mode | » Item Dimension：125mm(L) x80mm(W) x28mm (H) |
| » WEB, Telnet | » Item Net Weight：about 106g |
| Network Management | Environmental Specifications |
| Management Function | » Operating temperature: 0 to 40ºC |
| » Status monitor, Configuration management, | » Operating humidity: 10% to 90 %( Non-condensing) |
| Alarm management, Log management | Power Interface |
| Ordering Information | » 12V DC Power supply |
