Connect Faster & Easier Than Ever E/GPON (XPON) ONU UB5020 GW
Product Description
1GE+1FE+WiFi 4 XPON ONT UB5020 GW is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT.And it’s based on comes with high performance Realtek chipset(RLT9603C) which multi-function feature ensures stable, efficient and fast connection
UB5020 GW is designed as HGU (Home Gateway Unit) in deferent FTTH solutions by UBIQCOM, The carrier-class FTTH application provides data service access.It adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0 and GPON Standard oITU-TG.984.X.
XPON mode
Dual Mode , Can access EPON/GPON mainstream OLTs
Uplink mode
Bridging and Routing Mode.
PRODUCT FEATURES AND SPECIFICATIONS

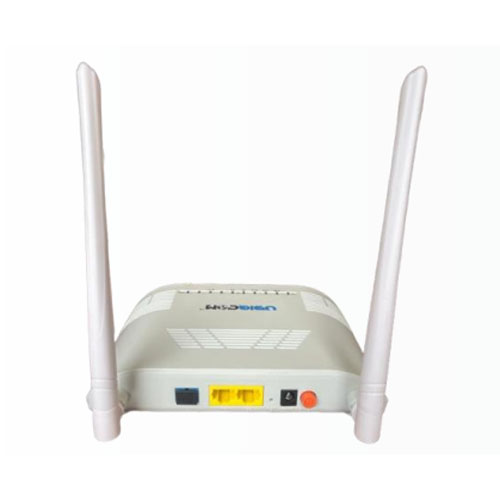

 ONU UB5020 GW.jpg)
Technical parameters
Hardware Parameter
| Dimension | 185mm×120mm×34mm（L×W×H） |
| Netweight | 0.24Kg |
| Operatingcondition | • Operating temp: 0 ~ +50°C • Operating humidity: 10 ~ 90% (non-condensed) |
| Storing condition | • Storing temp: -30 ~ +60°C • Storing humidity: 10 ~ 90% (non-condensed) |
| Power adapter | DC 12V, 1A, external AC-DC power adaptor |
| Powersupply | ≤7W |
| Interfaces | 1GE+1FE+WiFi4 |
| Indicators | POWER、LOS、PON、GE、FE、WiF |
Interface Parameter
| PONinterface | • 1 XPON port(EPON PX20+ & GPON Class B+) • SC single mode, SC/UPC connector • TX optical power: 0～+4dBm • RX sensitivity: -27dBm • Overload optical power: -3dBm(EPON) or -8dBm(GPON) • Transmission distance: 20KM |
| WIFIinterface | • IEEE802.11b/g/n (TX power:17dBm/16dBm/15dBm), Up to 300Mbps • 2T2R, 5dBi external antenna • Support 13 Channels |
| LAN interface | 1*GE+1*FE,Auto-negotiation, RJ45 ports |
Function Data
| Firewall | Filtering Based on ACL/MAC/URL. |
| Layer2 | 802.1D&802.1ad bridge,802.1p Cos,802.1QVLAN |
| Layer3 | IPv4/IPv6 , DHCP Client/Server , PPPoE ,NAT ,DMZ ,DDNS. |
| Multicast | IGMP v1/v2/v3 , IGMP snooping. |
| Security | Flow & Storm control, Loop Detection. |
| O&M | • WEB/TELNET/OAM/OMCI • Support private OAM/OMCI protocol • Unified network management of VSOL OLT |
| WiFi | • Authentication:WEP/WAP-PSK(TKIP)/WAP2- PSK(AES). • Support multiple SSID |
