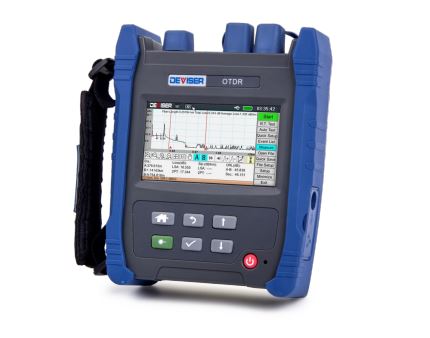

Deviser. AE1001 Portable OTDR
Key Benefits
• Ultra-portable, lightweight OTDR for FTTx networks
• 4.3” LCD touchscreen is visible in high- or low-light conditions
• Fast dual-wavelength test generates results in ≤5 seconds
• Excellent stability and repeatability
• Power-packed ~2-lb meter runs continuously for over 4 hours
• Save >160k OTDR traces with 16 GB of data storage
Technical parameters
Overview
The last thing a fiber maintenance technician needs is a double armful of bulky, feature-bloated equipment to bog down the job. The new AE1001 from Deviser Instruments is a sleek,zero[1]fuss OTDR weighing less than 1 kg that tests the common 1310 & 1550nm wavelengths in 5s flat. Low power consumption and a solid 2500mAH battery allow the AE1001 to run automated, manual, or real-time tests continuously for over 4 hours, and are supplemented with the always-handy OPM and VFL.
Optical Parameters
| Optical Parameters | Optical Parameters | |
| Test Wavelenght | Test Wavelenght | Test Wavelenght |
| Dynamic range* | 26 dB | 24 dB |
| Event deadzone** | ≤ 3m | |
| Attenuation deadzone** | ≤ 10m | |
| Measurement range | 150m, 300m, 500m, 1km, 2km, 5km, 10km, 20km, 40km, 80km | |
| Pulse width | 3ns, 5ns, 10 ns, 30 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1µs, 2µs, 5µs, 10µs, 20µs | |
| Sampling resolution | Auto / high-resolution modes | |
| Sampling points | Up to 12,800 | |
| Group refractive index*** | 1.000000 ~ 2.000000 | |
| Distance uncertainty | ± (0.75 + 0.005% × fiber length + sample resolution) | |
| Linearity | 0.05 dB/dB | |
| Loss threshold | 0.001 dB | |
| Loss resolution | 0.001 dB | |
| Refresh rate | 10 fields/s | |
| Reflectance accuracy | ±3 dB | |
| Measurement time range | 5s ~ 5min, real time | |
| Data storage | 16 GB, up to 160,000 OTDR traces |
| Other Test Modes | ||
| Calibrated A | 1310, 1550nm | |
| Optical | Operating A | 850, 980, 1300, 1310, 1490, 1550, 1610, 1625, 1650nm |
| Power Meter | Power range | Select from [-70 - +10 dBm] or [-50 +26 dBm] |
| Power accuracy | +0.23 dB | |
| Visual Fault | Wavelength | 650 10nm |
| Locator | Power | lmW |
| (VFL) | Compliance | Laser Safety Class II |
| Optical port | type | PC (default): APC (optional) |
| Optical adapter | type | FC (default): SC, ST, LC. SC/APC (optional) |
| General Specific ations | ||
| Display | 4.3" dot matrix TFT LCD touchscreen | |
| Interface | 1x USB 2.0; 1xRJ45 LAN (10M/100M/1000M, optional) | |
| Power | Supply | 100 - 240V, 1.5A, 50-60Hz (AC): max 12V / 2Ah (DC): total max power 24 W |
| Consumption | < 3W | |
| Battery | 7.4V / 2500 mAh Li-ion battery, 18.5 Wh | |
| Operating Time | - 6 hrs on full charge (4 hrs continuous testing | |
| Operating | Temperature | -10°C +50°C |
| Storage | Temperature | -40°C +70°C |
| Relative Humidity | 0 - 95% non-condensing | |
| Dimensions | (LxWxH) | 7.1"x5.7" 2.2"(180mmx 145mm x 55mm) |
| Weight | 2lbs(<1kg) |
