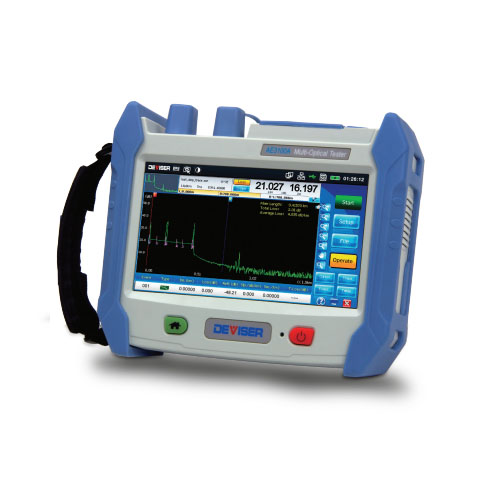

Deviser. AE3100CP/DP/EP/G Series 3 & 4 Wavelength Handheld OTDR
Key Features
• High performance OTDR for FTTx and RFoG networks
• 7”, 800x480 LCD touchscreen places power and convenience at your fingertips
• Excellent short-distance performance with 0.8m event dead zone and 3m attenuation dead zone
• Triple and quadruple wavelength testing at good dynamic range (35 - 43 dB)
• Minimum 5cm resolution
• Intelligent event analysis
• Excellent stability and repeatability
• "FiberPath" fiber link mapping mode
• Multiple options for your measurement needs, including: VFL, power meter, light source, and optical fiber microscope
• Complete user data ports: supports LAN, USB, SD, & more
• Single Mode live filtered port
Technical parameters
Overview
From Deviser Instruments' 4th generation of OTDR, the AE3100 marks a giant leap forward in fiber-optic test performance and utility. CP, DP, and EP models support three wavelengths, with dynamic range up to 43dB; AE3100G tests four wavelengths, customizable to your needs. Input signals that contain both 1310nm & 1550nm wavelengths are automatically filtered. Featuring intuitive touchscreen controls and real-time data analysis, the AE3100 is the ideal test instrument for constructing, deploying, maintaining, and authenticating FTTx networks as well as verifying access networks. Multiple models and configuration options ensure your unique measurement needs are covered.
Applications
Construction, deployment, maintenance, and authentication of the following networks:
• FTTx
• Long Haul Networks
• Passive Optical Networks (xPON)
• Local Area Networks (LAN)
• Metropolitan Area Networks (MAN)
Model Guide
| Model | Wavelengths (nm) | Dynamic Range (dB) | Event Deadzone* (m) | Attenuation Deadzone* (m) |
| CP-1 | 1310 / 1550 / 1625 | 37 / 35 / 35 | ≤ 0.8 | ≤ 3.0 |
| CP-2 | 1310 / 1550 / 1650 | |||
| CP-3 | 1310 / 1550 / 1490 | |||
| DP-1 | 1310 / 1550 / 1625 | 40 / 38 / 38 | ||
| DP-2 | 1310 / 1550 / 1650 | |||
| DP-3 | 1310 / 1550 / 1490 | |||
| EP-1 | 1310 / 1550 / 1625 | 43 / 41 / 41 | ||
| EP-2 | 1310 / 1550 / 1650 | |||
| EP-3 | 1310 / 1550 / 1490 | |||
| G | 1310 / 1490 / 1550 / select either 1625 or 1650 | 37 / 35 / 35 / 35 |
| General | |
| Wavelerg | 20nm |
| EventDead Zone | 50.8m |
| AttenuationDead lone | s3m |
| Distance Range | 100m 400m, 1.5km,3km 6km 12km, 25km, 50km, 100km, 200m 400m |
| Sampling Resolution | 5cm-12.8m |
| Sampling Points | 256,000max |
| Distance Accuracy (m) | (0.75m 0.001% Distance+ Sampling Resolution) |
| Group Retractive Index | 1.30000-1,70000 |
| Unecrity | 0.03 da/de |
| Los Threshold | 0.001d8 |
| Resolution | 0.001 d8 |
| Refresh Rate | 4 fields/second |
| Refectance Accuracy | #2dB |
| Pulse Width | 3rs Sns. 10ng 30ns. 50mg 100ns 200mg 500m has 24. 515. 194.2 |
| Measurement Time Range | 5min, red time |
| Data Storage | exportable to USB or Computer |
Specifications
| Functions | & Accessories | ||
| Test Modes | Manual Auto | ReFormats | Compatible withBellcore GR 196vi.1 ("SOR) |
| Limit Settings | Manual Auto | Loss lest Type | LSA, 2pt,4pt |
| Limit Profies | 8 customicable profiles | US Style | 4 styles available |
| DistanceSHIf | Yes: display negative events | RberPathLinearView | / |
| Reck-lime Testing | Touchscreen Keyboard | / | |
| Self-Correcting | Web Browser | / | |
| OnlineHelp | Auto Shutdown/Sleep | / | |
| Factory Reset | Macrobending Test | / | |
| Multisungual Fle Naming | Dual Wavelength Test | / | |
| Screenshots | Mult-Trace Compartion | / |
Specifications (cont'd)
| Functions & Accessories | (cont'd) | ||||
| Collbation A | 1310/1550mm | ||||
| Optical Power | Operating | Customized range up to 1700mm | 50/980/1300/1310/1490/1550/1610m available [1625mm & 1650nm] | ||
| Meter | Ronge | Select from | (-70-+10d8mor-0-+26d8m | ||
| Resolution | +0.77B | ||||
| Wovelength | 1310/1550/1625nm | 1310/1550/1650mm | 1310/1550/1490m (CP-3,DR-3&EP-3models) | 1310/1550/1490/ choose 1625 or 16.50mm (AE3100G only) | |
| Loser | Output Power | >4dam | |||
| Moder | /2kHz | ||||
| Wovelength | 650 T | ||||
| VFL | Power | 1WW | |||
| Compliance | Loser Safety | Class | |||
| USB RiberSpot | Mode | Available by | option orly | ||
| FbaPath | Available by | option orly | |||
| Fiber Clearing | Pen | Up to | 200 upes | ||
| Remote Testing | Regules SYNCOR | software configuration | |||
| Cloud Asset | Management | Requires SYNCOR | software configuration | ||
| Opical Port Type | PC (defoul) | APC (optional) | |||
| Optical Adopter | Type | FC detout): SC ST.LC. | SC/APC (optonal) |
| AFE1400 Auto Fiber | Endface Inspector | ||
| Field of Mew | 425 x 360 um | Compatibility | Use with AE3100 AEIOCO or Windows PC |
| Resolution | <1.5um | Magnification | 400x |
| Foult Size Detection | 0.75pm | Comero | 1.3mllonmegopixel 1/2 CMOS |
| Focus Range | mm 13mm). auto-locus | live Image | 800 x 800 JPG |
| Light Source | Blue LED | Storage Temp. | -20-+70°C |
| PowerSource | USB 2.0 port | Measure speed | |
| Dimensions (HxWxL) | 19" | Weight | 5.4oz(152g) |
| General Specifications | ||
| Display | 7*800x480 dot motix F LCD touchscreen | |
| interace | 2xUSB2.0; 1xRJ45LAN(1DM/100M) Tx SD card slot (64GBmax) | |
| Supply | 100 240V, SA,50-6DH2 (ACtmax12V /2Ah pc total maxpower 24 W | |
| Power | Consumption | <3.SN |
| Battery | 7.4V / 5300mAh Wonbottery 39.22Wh | |
| Operating Time | - 11 hrs on full charge | |
| Languages | Chinese, English, Spanish, Portuguese French Russion tolon (German, Korean, Arabic optional) | |
| Operation | -10°C-+30°C | |
| Temperature | Storage | 40°C-+70°C |
| Relative Humidity | 935,non-condending | |
| Dimendons | (LxWxH) | 8.1"x67"x30 (206mm) 71mmx73mm |
| Weight |
Ordering Information
| Dynamic Range | Event Deadzone | Attenuation Deadzone | ||
| E3100CP-1 | 1310/1550/1625nm | 37/35/35d8 | <08m | <3.0m |
| AE3100CP-2 | 1310/1550/1650nm | 37/35/35d8 | <08m | <3.0m |
| AE3100CP-3 | 1310/1550/1490nm | 37/35/35d8 | <0.8m | <3.0m |
| AE31000P-1 | 1310/1550/1625nm | 40/38/38d8 | <08m | <3.0m |
| AE31000P-2 | 1310/1550/1650mm | 40/38/38d8 | <08m | <3.0m |
| AE31000P-3 | 1310/1550/1470nm | 40/38/38d8 | <08m | <3.0m |
| AE310CEP-1 | 1310/1550/1625nm | 43/41/41d8 | <08m | <3.0m |
| AE3100EP-2 | 1310/1550/1650nm | 43/41/41d8 | <0am | <3.0m |
| AE3100EP-3 | 1310/1550/14POnm | 43/41/41d8 | <08m | <3.0m |
| AE3100G-1625 | (310/1490/1550/1625m | 37/35/35/35d8 | <0.8m | <3.0m |
| AE3100G-1650 | (310/1490/1550/1650m | 37/35/35/35d8 | <08m | <3.0m |
| FCFC | FC Connector and PC Physical Type | ||
| SC/APC | SC Connector and APC Physical Type | ||
| AE3100-701 | Optical Power Meter select other I-70 - +10d8mjor-50-+26d8m | ||
| AE3100-702 | Light Source Module | ||
| AE3100700 | Visual Faut locator, 650mm, mw | ||
| AFB400 | AutoRiber indiaceInspector | ||
| AE4000-801 | RberPath™ Link Mapper | ||
| AE4000-802 | Rberlune MultiScan | AE4000-737P | Riber Cleaning Pen |
| AE4000-750 | FC Connector | DS2400-703 | 2-Prong Power Card plus Ground (Europeexcept UK) |
| AE4000-753 | SC Connector | 308-0022-01 | 3-Prong Power Card plus Ground (US) |
| AE4000-751 | LC Connector | DS2400-704 | 3-Prong Power Cord plus Ground (Australia) |
| A54000-752 | ST Connector | D52400-705 | 3-Prong Power Cord plus Ground (UK) |
| FCFC-S0942 | Physical Connector (PC) Type (included) | UE24WCP | AC/DC Adapter 12V/2A |
| FC/APC | Angle Physical Connector (APC) Type | AE4000-002 | Carrying Case |
| AE3100010 | English Instruct for Manual (hard copy) | AE4000-737 | Optical Rber Cleaner K2 |
| AE3100-003 | QuickReference Guide | AE3100-001 | InstructionGuide & PC CO |
