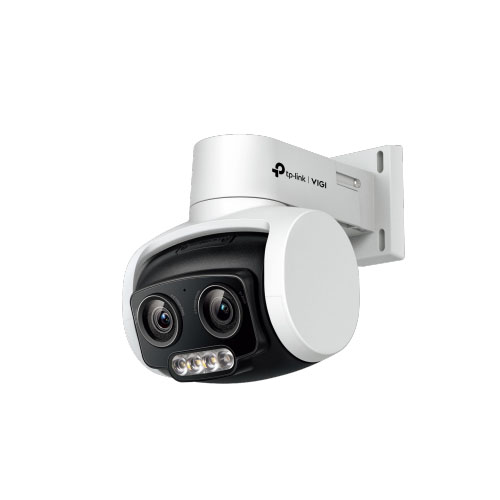

Dual-Lens Varifocal Pan Tilt Network Camera MODEL: VIGI C540V (3× Zoom)
Human & Vehicle Classification
Intelligently distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
VIGI Surveillance Solution
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business that you've worked hard to build—whenever, wherever.
Outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound
Technical parameters
Flexible Installation
Find the perfect vantage point by simply securing your camera to the ceiling, wall, or pole*
Specifications
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream 256 Kbps to Mbps Sub-Stream 64 Kbps to 12 Kbps |
| Image | |
| Max Resolution | 2560 1440 |
| Main Stream | Frame Rate: 1fps. 5fps. 10fps. 15fps. 20fps, 25fps 30fos Resolution 2560x1440 2304x1 296. 2048x1280 1920x1080 1280x720 |
| Sub-Stream | Frame Rate: 1fps, 5fps. 10fps. 15fps, 20fps, 25fps. 30tps Resolution 640x480, 352x288 320x240 |
| Image Enhancement | BLC/3D DNR/HLC/SmartiF |
| Image Settings | Mirror Brightness, Contrast, Saturation Sharpness Exposure WDR, White Balance, Prevent Overexposure Loinfrared Light, HLC Adjustable by Client Software |
| Day/Night Switch | Day/Night/Auto/Schedule-Switch |
| Privacy Mask | Upt Masks |
| Network | |
| Protocols | TCP/IP UDP. ICMP. HTTP HTTPS DHCP. DNS. RTSP. NTP, UPnP UDP. SSL/TLS |
| Network Storage | NAS (NFS SMB/ CIFS) |
| API | Open Network Video Interface (Profile S) |
| Web Browser | Google Chrome 57 and above Firefax*52 and above Safari 11 and above Microsoft® Edge 91 and above |
| Security | Password Protection HTTPS Encryption,IP Address Filter, Digest Authentication |
| Simultaneous Live View | Upto 6 Channels |
| Client | VIG App VIGI Security Manager, VIG NVR Web |
| Cloud | Yes |
| ONVIR | Yes |
| Interface | |
| Network Interface | 1RJ45 10/100M Self-Adapt ive Ethernet Port, PoE |
| On-board Storage | Built-In Memory Card Slot Support MicroSD Card, Upto 256 GB |
| Built-in Speaker | Yes |
| Built-in Microphone | Yes |
| Audio | N/A |
| Alarm | N/A |
| Reset Button | Yes |
| General | |
| Operating Temperature | -30-60 °C |
| Power Supply | 12VDC # 5% 5.5mm Coaxia Power Plug PoE (802.3at, class 4) |
| Power Consumption | 12VDC Max 14W PoE Class 4 |
| Audio Communication | Two-Way Audio |
| Ingression Protection | IP66 |
| Material | Plastic |
| Product Dimensions | 139*136*107mm |
| Certifications | CE. RCM. BSML VCCI RoHS NTRA KC |
