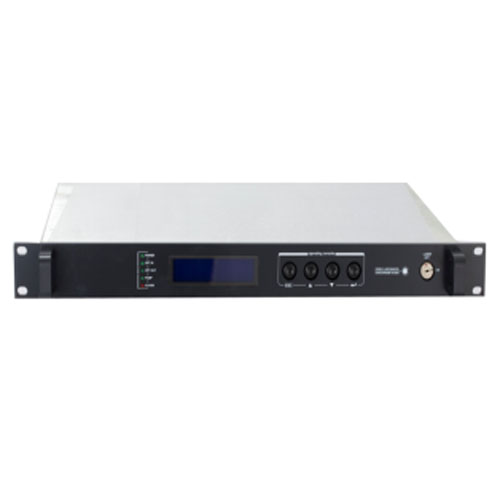

EDFA- 0416
Introduction:
Technical parameters
Ryax EDFA is an Optical amplifier used in the C&L Band, where the loss of telecom optical fibers becomes lowest in the entire optical telecommunications wavelength bands. It is mainly used for long distance Optical fiber Transmission of Television Image signals, Digital Transmission systems, Telephone Voice signals, and Data signals. Low Noise pump laser of famous brand JDSU/OCLARO, import high performance. EDFA can amplify multiple optical signal simultaneously, and thus can be easily combined with WDM technology.
Features:Pump Power450/550mw(High Density Pump). Working Temperature 0~48 °C.. Dual Power Supply . 4 Output Ports – 16 dBm/port .Low CNR Penalty .<4.5 dB RF Noise Figure .Low Power Consumption .Low Noise, High Output, Professional Equipment.
SPECIFICATIONS:
| ITEM | UNIT | TECHNICAL PARAMETER | REMARK |
| Operating bandwidth | nm | 1530 - 1560 | |
| Optical input power Range | dBm | -5 +5 | |
| Maximum optical output power | dBm | 16 | |
| Output pow er stability | dBm | +0.5 | |
| Noise figure | dB | 4.5 | OPTICAL INPUT POWER 0dB m, A=1550nm |
| RETURN LOSS INPUT | dB | >45 | |
| RETURN LOSS OUTPUT | dB | 45 | |
| OPTICAL CONNECTOR TYPE | SC/APC | ||
| C/N | dB | 50 | |
| C/CTB | dB | 63 | |
| C/CSO | dB | 63 | |
| Power supply voltage | V | A: AC160V - 250V(50Hz) |
