E/GPON (XPON) ONU UB5021 GVW-D
Product Description
2GE+1POTS+Wi-Fi GPON/EPON HGU terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators. These boxes are based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac Wi-Fi, Layer 2/3, and high quality VoIP as well. Support full management of HGU devices through UBIQCOM OLT. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah、ITU-T G.984.x and technical requirement of GPON Equipment.

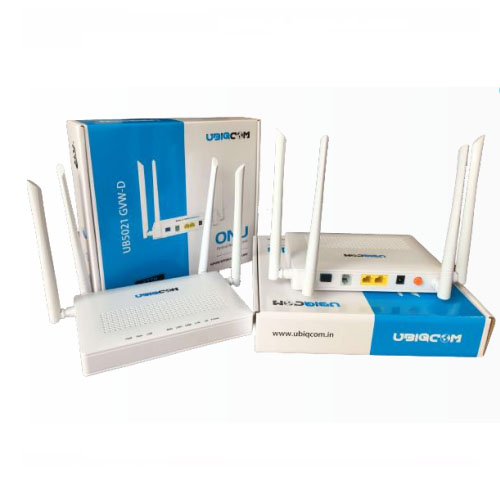

 ONU UB5021 GVW-D.jpg)
Technical parameters
| MAIN FEATURES | |
| Support full management of HGU functions | Ø Fully compatibility with OLT based on |
| by UBIQCOM OLT | Broadcom/PMC/Cortina chipset |
| Ø Plug and play, features auto-detecting, | Ø Support 802.11n/ac Wi-Fi(4T4R) |
| auto-configuration, and auto firmware | function |
| upgrade , etc. | Ø Support NAT, Firewall function |
| Ø Integrated OAM/OMCI remote | Ø Support IPv4 and IPv6 dual stack |
| configuration and maintenance function | Ø Support SIP protocol |
| Ø Support rich QinQ VLAN functions and | Ø Speed on Wi-Fi : |
| IGMP Snooping multicast features | 2.4ghz Upto 300Mbps |
| 5.8ghz Upto 1200Mbps |
PRODUCT FEATURES AND SPECIFICATIONS
UB5021 GVW-D XPON ONU
| PON interface | Wi-Fi interface |
| 1 G/EPON port(EPON PX20+ and GPON Class B+) | Compliant with IEEE802.11b/g/n/ac |
| Receiving sensitivity: ≤-28dBm | 2.4GHz Operating frequency: 2.400-2.483GHz |
| Transmitting optical power: 0～+4dBm | 5.0GHz Operating frequency: 5.150-5.825GHz |
| Transmission distance: 20KM | Support MIMO, 4T4R,5dBi external antenna, rate up to |
| Wavelength | 1.167Gbps |
| Tx1310nm,Rx 1490nm | Support: multiple SSID |
| Optical interface | TX power: 11n--22dBm/11ac--24dBm |
| SC/UPC connector | Operating condition |
| LAN interface | Temperature: 0℃～+50℃ |
| 2 x 10/100/1000Mbps auto adaptive Ethernet | Humidity: 10%～90%（non-condensing） |
| interfaces, Full/Half, | Storing condition |
| RJ45 connector | Temperature: -30℃～+60℃ |
| POTS interface | Humidity: 10%～90%（non-condensing） |
| 1 x RJ11 connectors | Power adapter |
| Support: G.711A/G.711U/G.723/G.729 codec | DC 12V/1A |
| Support: T.30/T.38/G.711 Fax mode, DTMF Relay | Power supply ≤10W |
| LED | Dimension |
| 9, For Status of POWER、LOS、PON、WAN、 LAN1、 | 178mm×120mm×30m(L×W×H) |
| LAN2、2.4G、5G、PHONE(option) | Net weight |
| Management Mode | 0.32Kg |
| OAM/OMCI、Telnet、WEB、TR069 | |
| Support full management of HGU functions by VSOL OLT | |
| Data Service Functions | |
| Wi-Fi Service Functions | • Full speed non-blocking switching |
| • Integrated 802.11b/g/n/ac | • 2K MAC address table |
| • Support max 128 users | • 64 full range VLAN ID |
| • Authentication : WEP/WAP-PSK(TKIP)/WAP2- | • Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc |
| PSK(AES) | • Integrated port monitoring, port mirroring, port rate limiting, |
| • Modulation type: DSSS、CCK and OFDM | port SLA, etc |
| • Encoding scheme: BPSK、QPSK、16QAM and 64QAM | • Support bridge, router and bridge/router mixed mode |
