E/GPON (XPON) ONU UB5021GVW
Product Description
The UBIQCOM Manufactures UB5021GVW WIFI GPON ONU brings carrier class high-end networking solution for advanced triple play services. It compliant with ITU-T G.984 standard, Wi-Fi 802.11n dual-band wireless connection speeds of up to 300 Mbps on 2.4 GHz , Layer 2/3, and high quality VoIP as well, UB5021GVW GPON ONU support the comprehensive triple-play services, including voice, video (IPTV or VoD), and high-speed internet access service.

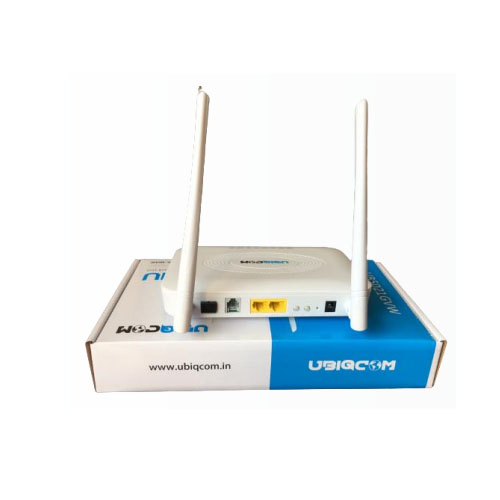

 ONU UB5021GVW.jpg)
Technical parameters
| POTS Specifications | Special Function |
| Support SIP voice protocol | Ø Port type POTS (VOIP) |
| Ø Support H.248 voice protocol | Ø Support TR069,NAT,DMZ,DNS features |
| Ø SIP protocol: ISP provide the port number of the main | Ø Support Multiple SSID |
| SIP proxy server and terminal VOIP | Ø Support Multiple VLAN |
| Ø Value range is 1-65535, system default value is 5060 | Ø Support IPV6 , PPPoE, DHCP and Static IP |
| Ø H.248 protocol: ISP provide port number of the spare | configuration for WAN Interface |
| MGC server and VOIP terminal | Ø Support IP, MAC filtering, Firewall Functionality in |
| Ø Value range is 1~65535, system default value is 2944 | routed mode |
| Ø Port ringing current voltage: 50±10VAC，30±10H |
PRODUCT FEATURES AND SPECIFICATIONS
UB5021GVW XPON ONU
| GPON Interface | Environmental Conditions |
| Rate: Upstream: 1.244Gbps Downstream: 2.488Gbps | Storage : Temperature -10 to 70°C, |
| Interface standard: | Rel. Humidity 10–90% (Non Condensing) |
| ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+ | Operation: Temperature 0 to 45°C, |
| Launch power: | Rel. Humidity 10–90% (Non Condensing) |
| Min: 0dBm Max: +5dBm | |
| Sensitivity: | Power Supply and Consumption |
| -27dBm | Power Adaptor |
| Input Power Overload: -8dBm | Input: 100 to 240 V AC, 50/60 Hz; Output: 12 V, 1A |
| Service Interface | Consumption: ≤8W |
| GPON Interface: 1 GPON Port | |
| Data Interface: 1 GE + 1 FE | |
| POTS Interface: 1 FXS Port | Physical Specifications |
| WIFI Interface: IEEE 802.11 ac/n/g/b/a wireless LAN | Dimensions: 180mm×120mm×31mm（L×W×H） |
| Antenna Type: 2 external antennas | Weight: 0.24KG |
| WI-FI Specifications | |
| Standard: IEEE 802.11 b/g/n | |
| Frequency: 2.4~2.4835GHz | |
| Transmission Speed | |
| 2.4GHz Frequency: | |
| IEEE 802.11b ：11/5.5/2/1M(Auto) | |
| IEEE 802.11g： 54/48/36/24/18/12/9/6(Auto) | |
| IEEE 802.11n： 270/243/216/162/108/81/54/27Mbps,up to 300Mbps | |
| Channel Number: | |
| 2.4GHz ：13 | |
| Spread-spectrum Technique: DSSS (Direct sequence spread spectrum) | |
| Data Modulation: | |
| DBPSK、DQPSK、CCK and OFDM (BPSK/QPSK/16-QAM/64-QAM) | |
| Transmission distance: | |
| Indoor Maximum | |
| 120 meters； | |
| Outdoor Maximum | |
| 360 meters (The distance depends on the environment) | |
| RF power | |
| 20dBm EIRP | |
| Antenna | |
| 5dBi Antenna |
