E/GPON (XPON) ONU UB5310G+
Product Description
G/EPON 1GE+CATV ONU is support Dual mode(EPON and GPON), It can also be applied to a wide temperature environment, and also has a powerful firewall function. G/EPON 1GE ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a GPON/EPON Gigabit Ethernet products. The box is based on the mature Gigabit GPON/EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
UB5310G+ is 1GE+CATV ONU designed for fulfilling FTTH ultra-broadband access request of home and SOHO users.

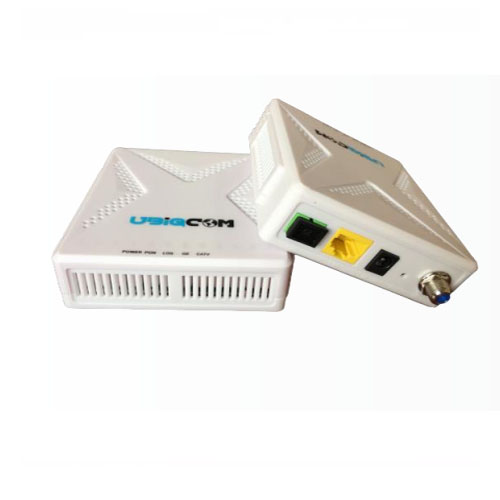

 ONU UB5310G+.jpg)
Technical parameters
MAIN FEATURES
| Dual mode | Detecting Rogue ONU |
| Access EPON/GPON OLTs) | Flow & Storm Control , Loop Detection |
| Compatible with popular OLT (HW,ZTE...) | Firewall: DDOS, Filtering Based on |
| Industrial Design | ACL/MAC/URL |
| Routing or Bridging Mode | O&M:WEB/TELNET/OAM(OMCI)/TR069 |
PRODUCT FEATURES AND SPECIFICATIONS
UB5310G+ XPON ONU
| PON interface | CATV interface |
| 1 G/EPON port(EPON PX20+ and GPON Class B+) | RF |
| Wavelength:Tx1310nm,Rx 1490nm | Optical power : +2~-18dBm |
| SC/UPC connector | Optical reflection loss: ≥45dB |
| Receiving sensitivity: ≤-28dBm | Optical receiving wavelength: 1550±10nm |
| Transmitting optical power: 0~+4dBm | RF frequency range: 47~1000MHz, RF output |
| Transmission distance: 20KM | impedance: 75Ω |
| RF output level and AGC range: | |
| LAN interface | 83dbuv@0~-10dBm / 81dbuv@-1~-11dBm / |
| 1 x 10/100/1000Mbps auto adaptive Ethernet | 79dbuv@-2~-12dBm / |
| interfaces.10/100/1000M Full/Half, | 77dbuv@-3~-13dBm / 75dbuv@-4~-14dBm / |
| RJ45 connector | 73dbuv@-5~-15dBm |
| Operating condition | MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
| Temperature: -30℃～+70℃ | |
| Humidity: 10%～90%（non-condensing） | Power supply: DC 12V/0.5A(option) |
| Storing condition | LED |
| Temperature : -30℃～+70℃ | 3, For Status of REG、SYS、LINK/ACT |
| Humidity :10%～90%（non-condensing） | Power consumption |
| ≤4W | |
| Dimension | |
| 82mm×82mm×25mm（L×W×H） | |
| Net weight: 85g |
Software Key Feature
| EPON/GPON mode | Dual mode , Can access EPON/GPON OLTs. |
| Software mode | Bridging mode and Routing mode. |
| Abnormal protection | Detecting Rogue ONU, Hardware Dying Gasp. |
| Firewall | DDOS, Filtering Based on ACL/MAC/URL. |
| Layer2 | 802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN. |
| Layer3 | IPv4/IPv6, DHCP Client/Server , PPPoE, NAT , DMZ ,DDNS. |
| Multicast | IGMP v1/v2/v3 , IGMP snooping. |
| Security | Flow & Storm control, Loop Detection. |
| O&M | WEB/TELNET/OAM/OMCI/TR069. |
