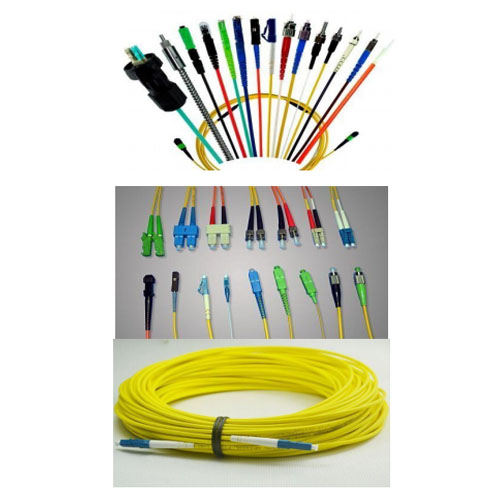

Fiber Optic Patch Cord
Fiber optic patch cord is available in both single mode and multimode versions. Both single mode and multimode versions fiber optic patch cord come with a Zirconia ceramic ferrule with prepolished PC,UPC,APC profile and convex spherical end. These end face types allow for faster polishing, and lowback reflection and optical loss, while ensuring maximum repeatability.
Technical parameters
Features:
1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard
Application:
1. Telecommunications
2. CATV, LAN, MAN, WAN, Test &Measurement
3.Military Applications
Parameter
| Mode | Single mode | Multimode |
| Polish | UPC APC | PC |
| Insertion Loss | ≤0.2dB ≤0.2dB | ≤0.2dB |
| Return Loss | ≥50dB ≥60dB | ≥35dB |
| Test Wavelength | 1310/1550nm | 850/1310nm |
| Durability(500 Matings) | ≤0.2dB | |
| Operating Temperature | -20 ~ +70 | |
| Storage Temperature | -40 ~ +85 | |
| Fire Resistant | IEC 60794-2-30 | |
| Standards-Compliant | ROHS,IEC and GR-326 |
| Fiber cable performance specifications | |||
| Fiber type | Min.Bandwidth | Distance | Attenuation |
| 62.5/125 | 850/1300nm 200/500 MHz/Km | @100Mbps 2km @1Gig 220m | 850/1300nm 3.0/1.0dB/km |
| 50/125 | 850/1300nm 500/500 MHz/Km | @100Mbps 2km @1Gig 500m | 850/1300nm 3.0/1.0dB/km |
| 50/125 10Gig Optimized | 850/1300nm 2000/500 MHz/Km | @100Gig Varies by VCSEL typical 300m 28 50nm | 850/1300nm 3.0/1.0dB/km |
| 9/125 | 1310/1550nm | Up to 100km Varies by transceiver | 1310/1550nm |
| Approx 100 Terahertz | 0.4/0.3dB/km | ||
| Fiber type | |||
| Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A,,G657A2 | |||
| Fiber | OFS/CORNING | ||
| Connector1 | SC | ||
| Polishing | APC | ||
| Connector2 | SC | ||
| Polishing | APC | ||
| Cord type | Simplex | ||
| Cable diameter | 0.9mm ,2.0mm, 3.0mm | ||
| Cable jacket | LSZH | ||
| length(M) | 0.3m,1m,2m,5m,10m,25m,50m,100m |
