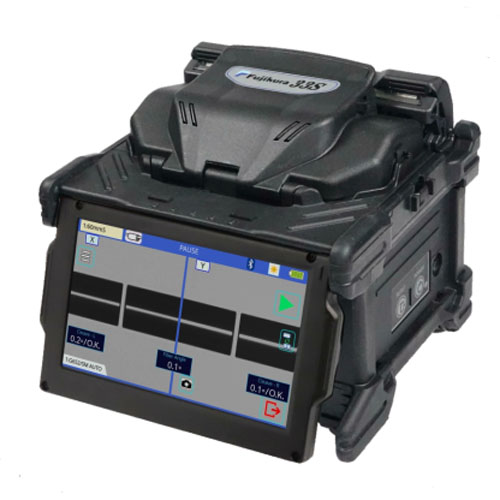

Fujikura 33S FTTH SPLICER Portable Splicing Machine
Fujikura 33S FTTH SPLICER Portable Splicing Machine
Technical parameters
spliced | Single fiber | |
| Single mode optical fiber | ||
| Applicable | Fiber type | Multi mode optical fiber |
| fiber | Cladding dia | Approx 125um |
| Applicable | Coating da Max 3000um | |
| coating | Sheath clamp | Cleave length 5 to 16mm |
| ITU-T G.652 Avg. 0.03dB | ||
| ITU-T G.651 Avg. 0.01dB | ||
| Fiber splice | Splice loss 2 | ITU-T G.653 Avg 0.05dB |
| performance | ITU-T G.655 Avg 0.05dB | |
| ITU-T G.657 Ave 0.03dB | ||
| Splice time *3 | SM FAST mode Avg.6to7sec | |
| Applicable | Sleeve type | Heat shrinkable sleeve |
| Protection | Sleeve length | Max 66mm |
| sleeve | Sleeve dia | Max 6 0mm before shrinking |
| Sleeve heat | Heat time *4 | 60mm mode Avg 15 22sec |
| performance | 60mm slim mode Aug 17sec | |
| Fiber tensile test force | Approx 2.0N | |
| Electrode life "5 | Approx 6,000 splices | |
| Dimensions W | Approx 131mm without projection | |
| Physical | Dimensions D | Approx 123mm without projection |
| description | Dimensions H | Approx 121mm without projection |
| Weight | Approx 1.4kg including battery | |
| Operate -10 to 50 °C | ||
| Environmental | Temperature | Storage -40 to 80 C |
| condition | Operate to 95%RH non-condensing | |
| Humidity | Storage 0 to 95%RH non-condensing | |
| Attitude | Max 5000m | |
| adaptor | Input | AC100 to 240V 50/60Hz Max 1A |
| Type | Rechargeable Lithium lon | |
| Output | Approx DC14.4V.3190mAh | |
| 60mm mode Approx 200 splice and heat cycles | ||
| Battery pack | Capacity 6 | 60mm slim mode Approx 230 splice and heat cycles |
| Recharge 0 to 40 C | ||
| Temperature | Long Term Storage -20 10 30 °C | |
| Battery life 7 | Approx 500 recharge cycles | |
| LCD monitor | TFT 4.95 inches with touch screen | |
| Display | Magnification | Approx 132 to 300x |
| Illumination | V-grooves | LED lamo |
| PC | USB2.0 Mni type | |
| Interface | External LED lamp | USB2.0 type Approx DC5V 500mA |
| Splice mode | 100 splice modes | |
| Heat mode | 30 heat modes | |
| Data storage | Splice result | 20,000 splices |
| Splice image | 100 images | |
| Screw hole for tripod | 1/4-20UNC | |
| Reference guide | PDF file stored in splicer | |
| Open with/without Wind Protector | ||
| Other features | Sheath clamp | Close with fiber setting |
| Easy sleeve positioning clamp | ||
| Electrode | Replaceable without tool |
| Sam | Model | Rene |
| FH-70-200 | 200umocating diameter | |
| FH-70-250 | 250um coating diaretar | |
| Fiber Holder | PH-70-600 | 900umocating diareter |
| FH-FC-20 | 900umin 2mm diameter cable | |
| 900umin Jnn diameter cable | ||
| Steath Camp | CLAMP-5358 | 900umloose butter cable |
| Fiber holder set clate | SP-04 | the holder 15 base |
| Transfer Clarg | CLAMP-OC-12 | Transfering drop cable work tray |
| FP-03 | 90mm Mex 900ymcoating dareter | |
| Protection sleeve | FP-03(L=40 | 40mm Vian 900ur coating diarete |
