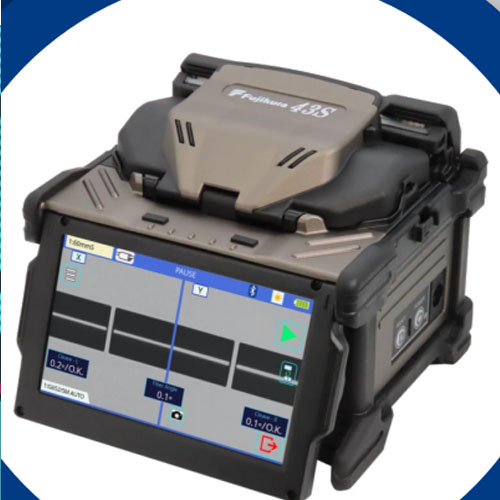

Fujikura 43S Single Fiber Fusion Splicer Active V-Groove Alignment
Fujikura 43S Single Fiber Fusion Splicer Active V-Groove Alignment
Technical parameters
43S Specifications
| Item | Model | Qty |
| Clad Alignment Fusion Splicer | 43S | 1 pc |
| (1) Battery Pack | BTR-17 | 1 pc |
| (2) AC Adapter | ADC-21 | 1 pc |
| (3) AC Power Cord | ACC-08 09 10. or 12 | 1 pc |
| (4) USB Cable | USB-01 | 1 pc |
| (5) Electrodes for spare | ELCT2-16B | 1 pair |
| (6) Carrying Case | CC-45 | 1 pc |
| (7) Work Tray | WT-10 | 1 pc |
| (8) Tripod Screw | TS-03 | 1 pc |
| (9) Carrying Case Strap | ST-04 | 1 pc |
| (10) Alcohol Dispenser | AP-02 | 1 pc |
| (11) Quick Reference Guide | QRG-08-E | 1 pc |
| Single Fiber Stripper | SS05 | 1 pc |
| Optical Fiber Cleaver | CT50 | 1 pc |
| (1) Fiber Scrap Collector | FDB-05 | 1 pc |
| Fiber Setting Plate | AD-16A | 1 pc |
| Case for cleaver | CC-37 | 1 pc |
| (4) Hexagonal Wrench | HEX-01 | 1 pc |
| Item | Specification | |
| Fiber alignment method | Active clad alignment | |
| Fiber count can be | spliced | Single fiber |
| Single mode optical fiber | ||
| Applicable fiber | Fiber type | Multi mode optical fiber |
| Cladding dia. | Approx 125um | |
| Applicable | Coating dia Max 3000um | |
| coating | Sheath clamp | Cleave length 5 to 16mm '1 |
| ITU-T G.652 Avg. 0.03dB | ||
| ITU-T G.651 Avg. 0.01dB | ||
| Fiber splice | Splice loss 2 | ITU-T G.653 Avg. 0.05dB |
| performance | ITU-T G.655 Avg. 0.05dB | |
| ITU-T G.657 Avg. 0.03dB | ||
| Splice time *3 | SM FAST mode Avg. 6 to 8sec. | |
| Applicable | Sleeve type | Heat shrinkable sleeve |
| Protection | Sleeve length | Max. 66mm |
| sleeve | Sleeve dia | Max. .0mm before shrinking |
| Sleeve heat | 60mm mode Avg. 21 to 23sec. | |
| performance | Heat time *4 | 60mm slim mode Avg. 16 to 18sec. |
| Fiber tensile test force | Approx. 2.0N | |
| Electrode life '5 | Approx. 6,000 splices | |
| Dimensions W | Approx. 131mm without projection | |
| Physical | Dimensions D | Approx. 123mm without projection |
| description | Dimensions H | Approx. 121mm without projection |
| Weight | Approx. 1.4kg including battery | |
| Operate: -10 to 50 °C | ||
| Temperature | Storage: -40 to 80 C | |
| Environmental | Operate: 0 to 95%RH non-condensing | |
| condition | Humidity | Storage: 0 to 95%RH non-condensing |
| Altitude | Max. 5000m | |
| AC adaptor | Input | AC100 to 240V, 50/60Hz Max 1A |
| Type | Rechargeable Lithium Ion | |
| Output | Approx. DC14,4V 3190mAh | |
| '6 | 60mm mode Approx. 200 splice and heat cycles | |
| Battery pack | Capacity | 60mm slim mode Approx. 230 splice and heat cycles |
| Recharge 0 to 40 °C | ||
| Temperature | Long Term Storage -20 to 30 °C | |
| Battery life 7 | Approx. 500 recharge cycles | |
| LCD monitor | TFT 4.95 inches with touch screen | |
| Display | Magnification | Approx. 132 to 300x |
| Illumination | V=grooves | LED lamp |
| PC | USB2 0 Mini B type | |
| Interface | External LED lamp | USB2.0 A type Approx. DC5V, 500mA |
| Wireless '8 | Bluetooth 5.2 | |
| Splice mode | 100 splice modes | |
| Data | Heat mode | 30 heat modes |
| storage | Splice result | 20,000 splices |
| Splice image | 100 images | |
| Screw hole for tripod | 1/4-20UNC | |
| Automatic | Fusion control | |
| functions | Blade management and control | |
| Reference guide | PDF file stored in splicer | |
| Other features | Open with/without Wind Protector | |
| Sheath clamp | Close with fiber setting | |
| Easy sleeve positioning clamp | ||
| Electrode | Replaceable without tool |
| Item | Model | Remarks |
| FH-70-200 | 200um coating diameter | |
| FH-70-250 | 250um coeting diameter | |
| Fiber Holder | FH-70-900 | 900um coating diameter |
| FH-FC-20 | 900um in 2mm diameter cable | |
| FH-FC-30 | 900um in 3mm diameter cable | |
| Sheath Clamp | CLAMP-S358 | 900um loose buffer cable |
| Fiber holder set plate | SP-04 | Fber holder set base |
| Transfer Clamp | CLAMP-DC-12 | Transferring drop cable on work tray |
| Protection | FP-03 | 80mm Max 900um coating dameter |
| slows | FP-031-40 | 40mm Max. 900um coating diameter |
