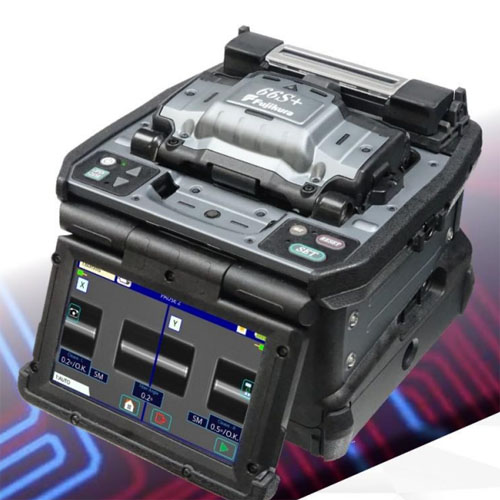

Fujikura Core Alignment Fusion Splicer 66S+
Fujikura Core Alignment Fusion Splicer 66S+
Technical parameters
| Description | Model No. | Qty |
| (1) Core alignment fusion splicer | 665+ | 1pc |
| (2) Battery pack | BTR-15 | 1pc |
| (3) AC adapter | ADC-20 | 1pc |
| (4) AC power cord | ACC-15 | 1pc |
| (5) USB cable | USB-01 | 1pc |
| (6) Fusion splicer strap | ST-02 | 1pc |
| (7) Electrodes (spare) | ELCT2-16B | 1pain |
| (8) Fiber holder set plate | SP-03 | 1pair |
| (9) Carrying case | CC-38 | 1pc |
| (10) Alcohol dispenser | AP-02 | 1pc |
| (11) Quick reference guide | QRG-05-E | 1pc |
| (12) Single fiber stripper | SS03 | 1pc |
| (13) Optical fiber cleaver | CT-08 | 1pc |
| (14) Fiber strap collector | FDB-04 | 1pc |
| (15) Fiber setting plate | AD-50 | 1pc |
| (16) Instruction manual | M-CT08-E | 1pc |
| Item | Specification | |
| Fiber alignment method | Active core alignment | |
| Fiber count can be spliced | Single fiber | |
| Applicable fiber | Fiber type | SMF(G.652/657) MMF(G.651) DSF(G 653) NZDSF(G.655) |
| Cladding da | 80 to 150um | |
| Sheath | Coating dia Max 3,000um | |
| Applicable coating | damp | Cleave length 5 to 16um |
| ITU-T G.652:Avg. 0.02dB | ||
| ITU-T G.651 Avg. 0.01dB | ||
| Fiber splice | Splice loss | ITU-T 1.653 Avg. 0.04dB |
| performance | ITU-T G,654 Avg. 0.04dB | |
| ITU-T G,655 Avg 0.04dB | ||
| ITU-T 657 Avg. 0.02dl | ||
| Splice time | Typical 7 sec. | |
| Applicable | Sleeve type | Heat shrinkable sleeve |
| protection | Sleeve length | Max 66mm |
| sleeve | Sleeve dia | Max 6 0mm before shrinking |
| Sleeve heat performance | Heat time | 60mm mode typical 25sec |
| Fiber tensile test force | Approx. 2.0N | |
| Electrode life | Approx 5,000 splices | |
| Physical description | Dimensions (mm) | 170W x 173D x 150H without projection |
| Weight | Approx 2.7kg including battery | |
| Temperature | Operate -10 to 50°C | |
| Environmental | Storage -40 to 80°C | |
| condition | Humidity | Operate 0 to 15%RH non-condensing |
| Storage 0 to 95%RH non-condensing | ||
| Altitude | Max 5,000m | |
| AC adaptor | Input | AC100 to 240V, 50/60Hz Max 1.5A |
| Output | Approx DC 12V, Max 7A | |
| DC adaptor | Input | DC10 to 15V Max 7A |
| Type | Rechargeable Lithium lon | |
| Output | Approx DC14 4V76, 380mAh | |
| Battery pack | Capacity | Approx 300 splice and heat cycles |
| Temperature | Operate -10 to 50°C | |
| Recharge 0 to 40°C | ||
| Storage -20 to 30°C | ||
| Battery life | Approx 500 recharge cycles | |
| Display | LCD monitor | TFT inches with touch screen |
| Magnification | 200 to 320m | |
| Illumination | V-grooves | LED lamp |
| PC | USB2 0 Mini B type | |
| Interface | External LED lamp | USB2 0 A type Approx DC5V 500mA |
| Ribbon Stripper | Mini DIN 6pin DC12V Max 1A | |
| Splice mode | 100 splice modes | |
| Data storage | Heat mode | 30 heat modes |
| Splice result | 0.000 splices | |
| Splice image | 100 images | |
| Automatic functions | Splice mode select by fber type analysis | |
| Fusion control | ||
| Wind protector open and close | ||
| Other | Sheath clamp open | |
| features | Splice start | |
| Heater start | ||
| Special splice | Attenuation splice | |
| Reference guide | Video and PDF file stored in splicer | |
| Sheath damp | Easy sleeve positioning clamp | |
| Electrode | Replaceable without tool | |
| Software for PC | Splicer firmware update via internet | |
| Parameter upload and download | ||
| Operating splicer with PC | ||
| Splice image download to PC |
| Item | Model | Remark |
| Fiber holder | FH-70-200 | 200um costing diameter |
| FH-70-250 | 250um coating diameter | |
| FH-70-900 | 900um costing diameter | |
| FH-70-160 | 160um coating diameter | |
| FH-70-500 | 500um coating diameter | |
| FH-60-DC250 | 250um in drop wire cable | |
| FH-FC-20 | 900um in 2mm diameter cable | |
| FH-FC-30 | 900um in 3mm diameter cable | |
| FH-60-LT900 | 900um loose buffer cable | |
| DC Adapter | DCA-03 | Connect AC adapter not through bettery |
| DC cord | DCC-20 | Car cigar socket to BTR-15/DCA-03 |
| power | DCC-21 | Car battery to BTR-15/DCA-03 |
| J-Plate | JP-10 | Attaching to splicer, not to work tray |
| JP-10-FC | JP-10 with fiber clamps | |
| FP-03 | (6mm Max 900um coating diameter | |
| Protection sleeve | FP-03(L-40) | 40mm Max 9CCum coating diameter |
| FP-03M | FP-03 with non-magnetic material |
