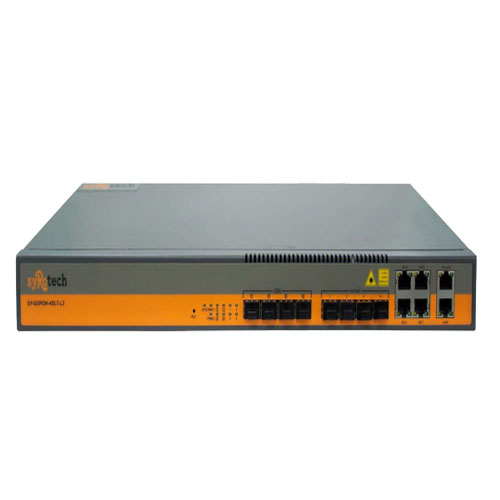

GEPON - 40LT - L3
Overview :
L3 EPON OLT products are 1U height 19-inch rack mount products. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTS can be used for "Triple-Play", VPN, IP Camera, Enterprise LAN and ICT applications.
Features:
• Provides 4GE (copper)4SFP/4SFP+ slots independent interface for uplink • 4*EPON OLT ports for downstream.
• It can support 256 ONUS under 1:64 splitter ratio
Technical parameters
Specifications
| Item | GOPON-4OLT-L3 | |
| Chassis | Rack | 1U 19 inch standard box |
| 1000M Uplink | QTY | 8 |
| Port | Copper | 4*10/100/1000M auto-negotiation |
| SFP (independent) | 4*SFP/4*SFP+ | |
| Backplane Bandwidf-128Gbps | ||
| System Capacity | MAC table Capacity-16K | |
| Switching capacity-96Gbps | ||
| QTY | 4 | |
| Physical Interface | SFP Slots | |
| Connector Type | 1000BASE-PX20+ | |
| EPON Port | Max splitting ratio | 1:64 |
| Management Ports | 1*10/100BASE-T out-band port, | |
| 1*CONSOLE port | ||
| PON Port Specification | Transmission Distance | 20KM |
| EPON port speed | Symmetrical 1.25Gbps | |
| Wavelength | TX 1490nm, RX 1310nm | |
| Connector | SC/PC | |
| Fiber Type | 9/125um SMF | |
| TX Power | +2~+7dBm | |
| Rx Sensitivity | -27dBm | |
| Saturation Optical Power | -6dBm | |
| Management Mode | SNMP. Telnet and CLI | |
| Management Function | Fan Group Detecting Port Status monitoring management:Layer2 switch configuration IGMP. QOS, etc EPON management ACL QOS etc; Online ONU configuration Management: Alarm management | and configuration such as VLAN, Trunk RSTP. function DBA,ONU authorization and management; User |
| Layer2 Switch | Support port VLAN and protocol VLAN: VLAN tag/Un-tag.VLAN transparent IEEE802.3d trunk: Support RSTP: QOS MAC address: Access control list IEEE802.x Statistic and monitoring | Support 4096 VLANs Support transmission QinQ: Support based on port. VID. TOS and flow control Port stability |
| Security | TACAS+ |
Specifications
| Item | GOPON-4OLT4.3 | |
| Multicast | IGMP snooping 256 IP Multicast Groups | |
| DHCP | DHCP relay DHCP snooping | |
| Layer Route | Arp proxy Static route 1024 hardware Host Routes: | Routes: 512 hardware Subnet |
| EPON Function | Support port-based rate limitation and with IEEE802.3ah standard Up to 20KM encryption multi-cast, port VLAN separation etc.;Support Dynamic and width Allocation auto- discovery/link detection/remote VLAN division and user separation to avoid Support various LID configuration and Different user and different service could different LLID channels Support power-off problem detection; Support broadcasting Support port isolation between different configure data packet filter flexibly prevention to maintain stable system; EMS online: | bandwidth control In compliant transmission distance Support data RSTP. (DBA): Support ONU upgrade of software Support broadcast storm; single LLID configuration: Provide different QoS by means of alarm function, easy for link storm resistance function; Ports: Support ACL and SNMP to Specialized design for system breakdown Support dynamic distance calculation on |
| Support | STP. IGMP Proxy. | PON Protection Type B |
| Dimension (L*W*H) | 442mm*200mm*43.6mm | |
| Weight | 4.2kg | |
| Power Supply | 220V AC | AC:90-264V 47/63Hz |
| Power Consumption | 30W | |
| Operating Environment | Working Temperature | -10~+55°C |
| Storage Temperature | -40-+85°C | |
| Relative Humidity | 5-90%(non-conditioning) |
