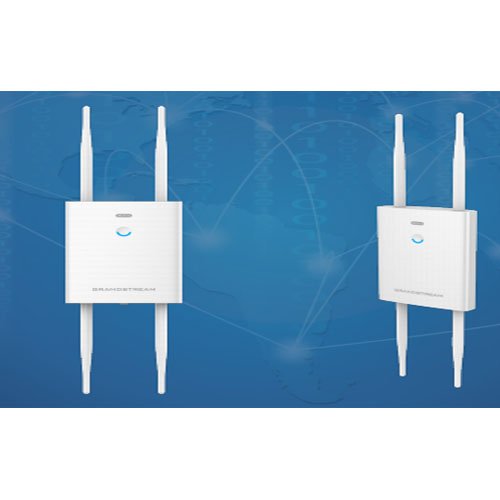

High-Performance Outdoor Long-Range Wi-Fi 6 Access Point
The GWN7664LR is an outdoor 802.11ax 4×4:4 Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4×4:4 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network through that supports 512 clients and an expanded 300-meter coverage range. To ensure easy installation and management, the GWN7664LR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7664LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and dual Gigabit networks ports with PoE/PoE+, the GWN7664LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.
Technical parameters
| Wi-Fi Standards | IEE 802.11 b/g/n/ac/ax |
| Antennas | 4 dual band external antennas 2.4GHz, gain 3.5dBi 5 GHz, gain 3.5dB |
| Wi-Fi Data Rates | 5G: IEEE802.11ax 8 Mbps to 2402 Mbps IEEE 802.11ac 6.5 Mbps to 1733 Mbps IEEE 802.11rc 6.5Mbps to 600Mbps IEE E 802.11a:6, 9, 12, 18, 24, 36, 48, 54 Mbps 2.4G: IEEE 802.11ax 8 Mbps to 1147 Mbps IEEE 802.11rd 5.5Mbps to 600Mbps IEEE 802.11bc 1,2, 5.5 11 Mbps IEEE 802.11g 6, 9. 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network |
| Frequency Bands | 2.4GHz radio: 2412-2484 MHz 5GHz radio: 5180 5825 MHz *Not all frequency bonds can be used in all regions |
| Channel Bandwidth | 24G 20 and 40 MHz (x4) SG: 20, 40 and 80 MHz (x4) |
| System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES) WPA3 anti-hacking secure boot and critical data/control lockdown via digital signatures unique security certificate and random defaut password per device |
| MU-MIMO | 4x4:42.4GHz, 4x4:4 5GHz |
| Coverage Range | Upto 300 meters *Caverage range can vary based on environment |
| Maximum TX Power | SG: 25dBm 2.4G 26dBm *Maximum power varies by country, frequency band and MCSrate |
| Receiver Sensitivity | 24G 802.11 99dBm@1Mbps. 1dBm@11Mb 802.11g -94dBm @6Mbps, -78dBm@54Mbp 802.11 20MHz -75dBm @MCS7; 802.1 in 140MHz>71dBm@MCS7; 802.11 20MHz -64dBm @ MCS11; 802.11 ax 40MHz-63dBm @MCS11 5G 802.11a -95dBm @6Mbps, -77dBm @54Mbps; 802.11m 20MHz -74dBm @MCS7; 802.11 n 40MHz: -71dBm @MCS7 802.11 ac 20MHz -70dBm@MCS8 802.1 lac: HT 40 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9; 802.11 ax 20MHz -64dBm @ MCS11 802.11 ax 40MHz -62dBm @MCS1 1,802.11 ax 80MHz -59dBm @ MCS11 |
| SSIDs | 32 SSIDstotal 16 per adio (2.4GHz& SGHz) |
| Concurrent Clients | 512 |
| Network Interfaces | 1x 1G Part and 1x 2.5G Port, supports 3.5Gbps aggregate wired throughput |
| Auxiliary Ports | 1x Reset Pinhole |
| Mounting | Wall mount or pale mount, kits included |
| LEDs | 1 tri-color LEDs for device tracking and status indication |
| Network Protocols | IPv4, IPvG, 802.10. 802.1p, 802.1x, 802.11 e/WMM |
| Qas | 802.11e/WMM, VLAN, TOS |
| Network Management | Embedded controller can manage upto localGWN APs GWN.Cloud offers a free doud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWNAPs |
| Power and Green Energy Efficiency | PoE 802.3af 8023at Maximum Power Consumption:18W |
| Environmental | Operation:-30°Cto60°C Storage -30°C to 60°C Humidity: 10% to 90% Non-condensing |
| Physical | Unit Dimension: 562.3mm(L)x140mm(W)x44.9mm(HI Unit - Mounting Kits Dimension: (562.3mm(L)x140mm(W)x66.9mm(HI Entire Package Dimension: 260mm(L)x218.5mm(W)x108mm(H] |
| Package Content | GWN7664LR 802.11 ax Wireless AP, Mounting Kits Quick Installation Guide |
| Weatherproof Grade | IP66-level weatherproof capability when installed vertically |
| Compliance | FCC CE, RCM, IC. UKCA - |
