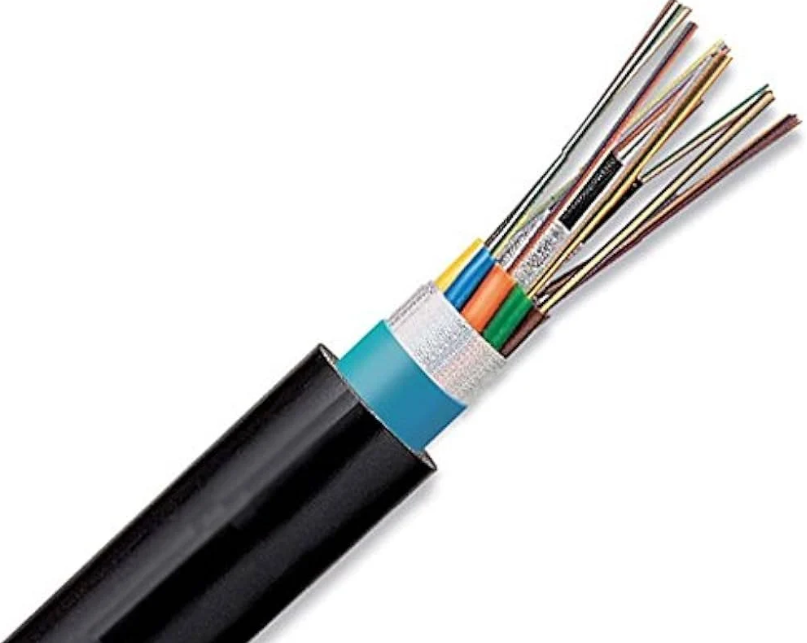

Messenger Ofc / Fig08Ofc
Messenger Ofc / Fig08Ofc
Technical parameters
| PARAMETER | SPECIFICATIONS | |
| FIBER TYPE | SINGLEMODE FIBER IT.U.G.6520 | |
| No. OF FIBERS PER LOOSE TUBE | 2F to 12F | No. |
| FIBER COLOUR IDENTIFICATION | ||
| BL& NT | ||
| BLORGRANT | ||
| BLOO 68, BR. SL & NT | ||
| BL OR GR, BR. SL WH, RD & NT | ||
| BL OR GR 88, SL WH,RD, BK, . VLPK& NT | ||
| FIBER | 66520 SM Matched Clad (As per G-6520) | |
| FIBER ATTENUATION | ||
| 1310nm | <0.35 | dB/Km |
| 1550nm | <0.23 | dB/Km |
| WAVELENGTH | ||
| 1310nm | 0.35 | |
| 1550nm | 0.23 | |
| 1625nm | 0.21 | |
| MESSENGER WIRE | TWELVE (12) GI STEEL WIRES STRANDED TOGETHER | |
| NOMINAL SIZE OF GI WIRE | 0.43 | mm |
| THICKNESS OF CLUTCH WIRE(12X0.43mm) | 1.8 | mm |
| HDPE JACKET OVER MESSENGER WIRE | 12 | |
| WEB | ||
| HEIGHT | 1.2 | mm |
| WIDTH | 1.2 | mm |
| LOOSE TUBE | 1.0 | No. |
| MATERIAL | PBTP | |
| DIAMETER | 2.4 Nominal | mith |
| COLOUR | NATURAL | |
| FILLING COMPOUND | THIXOTROPIC JELLY | |
| OUTER JACKET MATERIAL | HOPE | |
| COLOUR | BLACK | |
| NOMINAL THICKNESS | 2.0 | - |
| Environmental Performance | ||
| Installation | Min-20/Max +70 Degree | |
| Service | Min-20/Max +70 Degree | |
| Storage | Min-20/Max+70 Degree | |
| TENSILE STERNGTH | 2500 | Newton |
| NOMINAL CABLE WIDTH | 7.0 | -mm |
| NOMINAL CABLE HEIGHT | 13 Nominal | mm |
| NOMINAL CABLE WEIGHT | 93 | Kg/Km |
| STANDARD LENGTH | 1500Mtrs 2000Mtrs | Kms |
