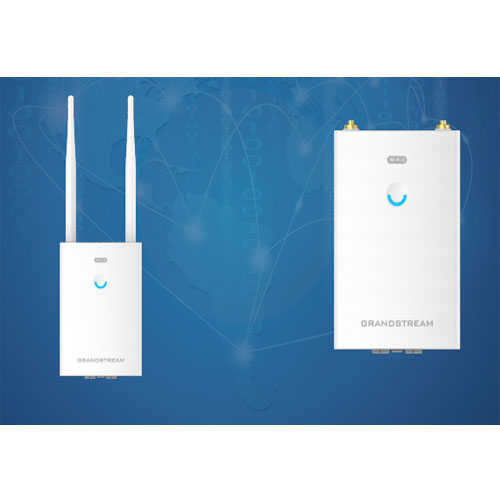

Outdoor Long-Range Wi-Fi 6 Access Point
The GWN7660LR is a long-range 802.11ax Wi-Fi 6 access point designed to provide next generation network coverage for indoor and outdoor environments. It offers IP66 weatherproof certified casing, dual-band 2x2:2 MU-MIMO technology and a sophisticated antenna design for extended coverage range of up to 250 meters. The GWN7660LR is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that and makes managing your network or several networks across multiple locations easier than ever before. It also uses a controller[1]less network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi APs. The GWN7660LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and dual Gigabit networks ports with PoE/PoE+; the GWN7660LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, parks, hospitals, schools and more.
Technical parameters
| Wi-Fi andards | IEEE a/b/g/n/ac (Wave-2) |
| Antennas | 6 single frequency internal antennas 2.4GHz, gain 3.5dBi SGHz, gain 4.5dBi |
| Wi-Fi Data Rates | 2.4G: IEEE 802.11m 6.5Mbps to 300Mbps IEEE 802.11bc 1,2, 5.5 11 Mbps IEEE802.11g:6 9, 12, 18, 24, 36, 48,54 Mbps 5G: IEEE802.11ac 6.5 Mbps to 1733 Mbps IEEE 802.11mc 6.5Mbps to 600Mbps IEEE802.11a:6, 9, 12, 18, 24, 36, 48,54 Mbps "Aqual throughout may very depending on manyfactors including environmental conditions distance be OMBOY devices, radio interference in the operating environment and mixof devices in the an work |
| Frequency Bands | 2.4GHz Radio 2412 2484 MHz 5GHz Radio 5180-5825 MHz "Not all frequency bonds can be used in of regions |
| Channel Bandwidth | 2.4G: 20 and 40 MHz SG: 20,40 and 80 MHz |
| Wi-Fi and System Security | WEP, WPA/WPA2-PSK WPA/WPAZ Enterprise (TKIP/AES): WPA3, anti-hacking secure boot and critical data/control lockdown via digitalsignatures, unique security certificate and random default password per device |
| MIMO | 2x2:2 2.4GHz(MMO) 4x4:4 5GHz(MU-MIMO) |
| Coverage Range | Up to 165 meters *coverage range on very based on environment |
| Maximum TX Power | 2.4G: 23dBm SG: 25dBm Maximum power varies by country. Sequency band and MCSrate |
| Receiver Sensitivity | 2.4G 802.11bc -96dBm@1 Mbps, 488d8m@11Mbps 802.11g 93dBm@6Mbps 75dBm@54Mbps 802.11m 20MHz -73d Bm @MCS7; 802.11r 40MHc>70dBm@MCS7 5G 802,11a -92dBm@6Mbps -74d lim @54Mbps 802,116 20MHz -74d lim @MCS7; 802.11n 40MHz-71dBm@MCS 802.11ac 20MHz 67d@m@MCS8; 80MHz: 59dBm @MCS9 |
| SSIDs | 16 SSIDs total 8per radio (2.4GHr & 5GH1) |
| Concurrent Clients | 200 |
| Network Interfaces | 2x autosensing 10/100/1000 Base-T Ethernet Parts |
| Auxiliary Ports | 1x Reset Pinhole, 1x Kensington lock |
| Mounting | Indoor wall mount or ceiling mount, kits included |
| LEDs | 3 tri-color LEDs for device tracking and status indication |
| Network Protocols | IPv4,IPv6 802.1Q 802.1p 802.1x 802.11e/WMM |
| QoS | 802.11e/WAM VLAN, TOS |
| Network Management | Embedded controller can manage up to 50 local GWN APs GWN. Cloud offers a free doud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs |
| Power and Green Energy Efficiency | Supports 802 3az PoE 802 3afa 802 3at; Maximum Power Consumption:<13W |
| Environmental | Operation 0°C to 50°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-candensing |
| Physical | Unit Dimension: 205.3mm(L)x205.3mm(W)x45.9mm(HI Unit Weight 530g Entire Package Dimension: 258mm(L)x247mm(W)x86mm(HE Entire Package Weight: 897.3g |
| Package Content | GWN7625 802.1 11ac Wave-2 Wireless AP, Mounting Kits, Quick Installation Guide |
| Compliance | FCC CE, RCM IC, UKCA |
