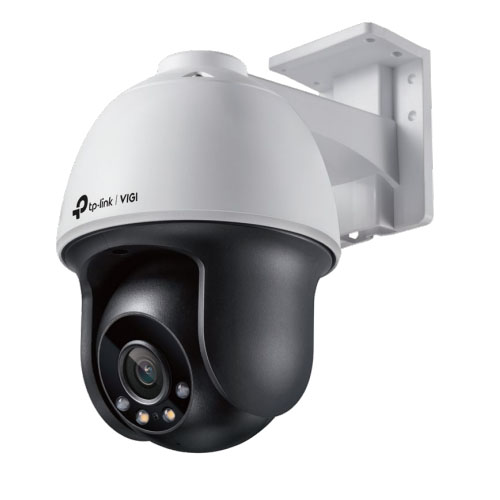

PT Network Camera MODEL: VIGI C540
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera
Motion Detection
Get instant notifications when your camera detects motion
Technical parameters
Human Detection
Smarter security alerts focus on human movement instead of flying insects, small animals and leaves.
Line-Crossing
Set a boundary and receive an alert anytime a person crosses it from either or both directions.
Area Intrusion
Set customized activity zones around key areas for more focused monitoring.
Camera Tampering
Receive alerts when someone obstructs the camera.
Flexible Pan Tilt
• Scheduled Movement Power-off Memory Function Auto Tracking • Remote Monitoring & Configuration
VIGI Surveillance Solution
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business that you've worked hard to build—whenever, wherever. Outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound
Flexible Installation
Find the perfect vantage point by simply securing your camera to the ceiling, wall, or pole.
Specifications
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| PTZ | |
| Pan/Tilt Range | Parc 0° to 350°, Tilt: 0° to 120° |
| Zoom | Yes |
| Lens | |
| Lens Type | Fixed focal lens, 4mm |
| Aperture | 4mm: F1.6 |
| Focal Length & FOV | 4mm Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93 |
| Lens Mount | M12 |
| Illuminator | |
| IR LED | Range: 30m; Wavelength: 850nm |
| White LED | Range: 30m |
| Compression Standard | |
| Video Compression | Main stream: H.265/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Smart Feature-set | |
| Smart Event | Area Intrusion Detection, Line-Crossing Detection, Human Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
| Image | |
| Max. Resolution | 4MP |
| Main Stream | Frame Rate: 1fps, 5fps. 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1 296, 2048x 1280, 1920x1080 |
| Sub-Stream | Frame Rate: 1fps, 5fps. 10fps, 15fps, 20fps, 25fps, 30fps Resolution 640x480, 352x288 320x240 |
| Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Network | |
| Protocols | TCP/IP, UDP. ICMP. HTTP. HTTPS, DHCP. DNS, RTSP. NTP. UPnP UDP. SSL/TLS |
| General Function | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| API | ONVIF |
| Security | Password Protection HTTPS Encryption, IP Address Filter, Digest Authentication |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| User/Host | Up to 21 Users |
| Client | VIGI Security Manager, VIGI app |
| Intert face | |
| Communication Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Video Output | No |
| Reset Button | Yes |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
| Built-in Speaker | Yes |
| Built-in Microphone | Yes |
| General | |
| Operating Temperature | -30-60 °C |
| Power Supply | 12V DC I 5% 5.5mm Coaxial Power Plug PoE (802.3at, class 4) |
| Power Consumption | 12V DC: Max 14W PoE Class 4 |
| Material | Plastic |
| Product Dimensions | 120 x 172 x 198 mm |
| Certifications | CE, RCM, BSML VCCI, RoHS, KC |
