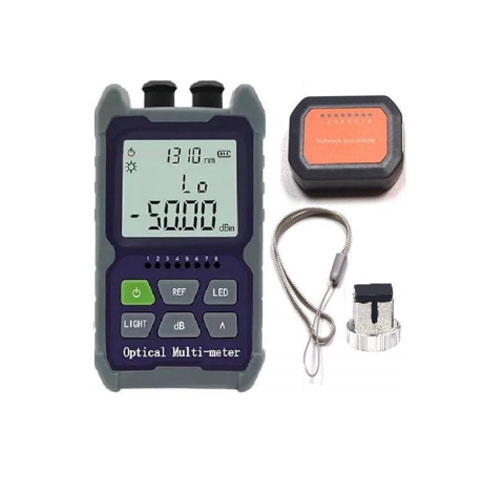

Ryax Optical Power Meter With VFL
Ryax 4 in 1 Optical Power Meter with Laser Light - 50~+26dbm Fiber Optic Tester Electric Meter Network Cable Tester Led Light Optical Power Meter Vfl Visual FaultL ocator 10 mw.
Technical Specification :
• optical power meter Function: can measure 8 standard wavelengths 850/980/1300/1310/1490/1550/1625/1650nm , test range: -50dBm~+26dBm, 2Mw red light source.
• power meter Support lighting,Support automatic shutdown,Support backlight selection, Support wavelenghth memory function,Support user calibration.
• optic power meter Support FC/SC/ 2.5mm universal interface, Support RJ45 testing, Support simultaneous display of linear mW and non-linear index dBm.
• lan tester The light power meter & VFL ,Test precision, fine workmanship, easy to carry, completely replace the optical power meter red penand rj45 tester 3 products. Come with English manual
• optical power meter with laser light 1）Wavelength Memory Function 2）Automatic shutdown 3）RJ45 Sequence
Technical parameters
Technical Details
| Brand | Ryax |
| Model number | optical power meter with laser light |
| Colour | Black |
| Number of Memory Sticks | Black |
| Number of Memory Sticks | 1 |
| Special Feature | Power meter and VFL integrated in one unit, this tester allows to perform both optical power/loss measurements and Fiber faults tracing visually, Optical Port: FC, SC, ST interchangeable supports various optical connectors |
| Specific Product Use | This tester is an ideal tester used in quickly mechanical splicing and FTTx networks |
| Item Weight | 230 g |
| Product Dimensions | 11.2 x 6 x 3 cm; 230 g |
| Item model number | optical power meter with laser light |
| Item Height | 30 Millimeters |
| Item Width | 6 Centimeters |
| Included Components | 1*Optical Power meter , 1* English User Manual |
| Are batteries included? | yes |
