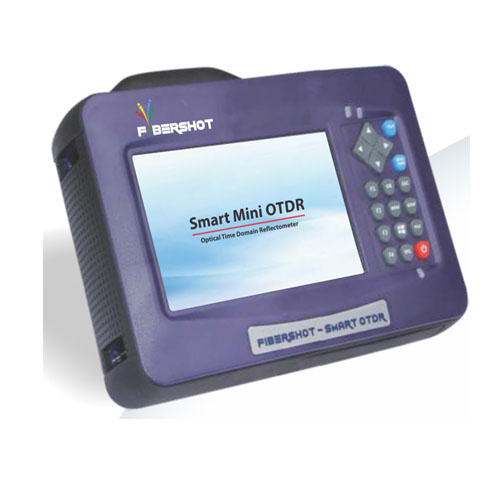

Star. MINI OTDR SERIES.
Easy testing with MINI OTDR Series :
With its lightweight design and user friendly dimension, MINI OTDR Series is perfect for the inside or outside plant environment and can be easily operated even by a novice. Fibershot MINI SMART OTDR Series ensures accurate and complete fiber evaluation while the testing requires only one key to start, allowing anyone to proceed error-free testing. Its ease of use, economical price, high resolution and compact size make it be a qualified as the best OTDR tester for installation, operation and maintenance of optical networks.
Technical parameters
| KEY FEATURES : | APPLICATIONS : |
| Hand-held and portable | CATV Network Testing |
| High cost performance | Access Network Testing |
| 5-inch HD touch screen | LAN/WAN Network Testing |
| Simple interface and one-button testing | Metro Network Testing |
| Long working hours | Lab and Factory Testing |
| Support multi-languages | Real-time troubleshooting |
Specifications
| Dimension | 195x140.5x46mm / 0.9 kg (Battery included) |
| Display | 5 Inch TFT-LCD (Touch Screen) |
| Interface | 3xUSB Port (USB A Type x 2, Micro-USB x1) |
| Battery | 7.4V/3300 mAh Lithium Battery (with Air Traffic Certification) Continuously Test : 6 Hours (Back light off) Charging Time : 3.5 Hours |
| Data Storage | 40,000 results |
| Environmental Conditions | Operating Temperature and Humidity : 10°C~+50°C, < 95% (non-condensation) Storage Temperature and Humidity : 20°C~+70°C, < 95% (non-condensation) |
| Accessories | Main Unit, 12V Power Adaptor, Lithium Battery, FC Adapter, USB Cord, User Guide, CD Disk, Carrying Case, Wrist Belt |
MINI OTDR SERIES
Test Parameters
| Pulse Width | 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1µs, 2µs, 5µs, 10µs, 20µs (20µs only for B-35/33 |
| Testing Distance | 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km |
| Sampling Resolution | Minimum 4cm |
| Sampling Resolution | Maximum 128,000 points |
| Sampling Point | 0.04dB/dB |
| Linearity | X axis: 4~70m/div, Y axis: 0.09~5dB/div |
| Scale Indication | 0.01dB |
| Loss Threshold | 0.001dB |
| Loss Resolution | 0.01m |
| Distance Resolution | ±(1m+measuring distancex3x10-5+sampling resolution) (exclusing IOR uncertainly) |
| Distance Accuracy | 1.2000~1.5999, 0.0001 step |
| Refractivity Setting | AC DC adopter input 100 to 250 volt ac, 50-60 Hz |
| Power Supply |
VFL Module (Optional):
| Wavelength | 650nm |
| Power | 10mw, CLASSIII B |
| Range | 12km |
| Connector | FC/UPC |
| Launching Mode | CW/2Hz |
OPM Module (Optional):
| Wavelength Range | 800~1700nm |
| Calibrated Wavelength | 850/1300/1310/1490/1550/1625/1650nm |
| Test Range | ‐60~+5dBm |
| Resolu,on | 0.01dB |
| Accuracy | ±0.35dB±1nW |
| Modula,on Iden,fica,on | 270/1k/2kHz, Pinput³‐40dBm |
| Connector | FC/UPC |
