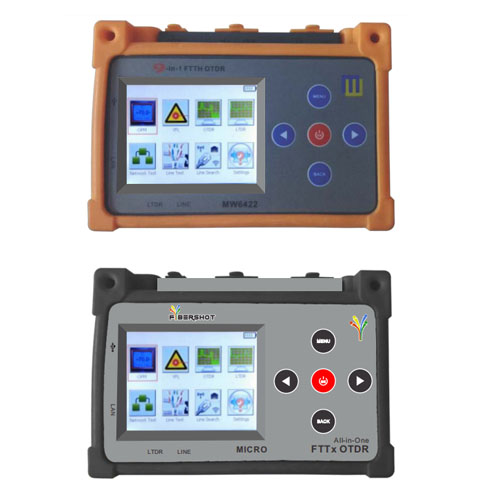

Star. PRESENTING THE MICRO-PON-OTDR.
Best OTDR for CABLE-TV & Broadband Operators
OTDR – Full Function PON OTDR that also allows Live Fiber Testing.
LTDR – To Test Copper CAT-5/6, Cable TV Copper Cables, Electrical Wiring.
OPM – To Check Optical Signal Level.
PON POWER METER – Check OLT/ONU, Useful for Internet Service Providers.
VFL - Check Fiber Faults Visually.
NETWORK TEST – No Need of Laptop to Check Internet Speed & LAN Health.
LINK TEST – Can Check Ping to the Router/Gateway.
LINE TEST – Check Break/Shorting Point in The Copper Cat-5/6 Cables.
LINE SEARCH – Locate cables under the Wall or Find Cable in the Control Room
DETAILED FUNCTION & INTRODUCTION
Technical parameters
OTDR: LOCATE THE FAULTS AND BREAKS OF OPTICAL FIBER, MEASURE THE LENGTH, THE TRANSMISSION LOSS AND THE SPLICE LOSS, ETC, (30KM FOR ATTENUATION & 50KM FORBREAKING POINT)
LTDR: MEASURE THE LENGTH, BREAKING POINT, SHORT CIRCUIT POINT, IMPEDANCE MIS-MATCH POINT AND DISTANCE BETWEEN 2 POINTS FOR NETWORK CABLES, COAXIAL CABLES AND OTHER CABLES & WIRES.
OPM: MEASURE THE AVERAGE OPTICAL POWER.
PON POWER METER: MEASURE THE PON UPSTREAM SIGNAL (1310NM & 1277NM) POWER, TO JUDGE WHETHER THE ON-LINE ONU EXIST AND ONU UPSTREAM PULSE IS IN NORMAL CONDITION.
VFL: USED FOR FIBER TRACING, FIBER ROUTING AND CONTINUOUS CHECKING IN THE OPTICAL NETWORK.
NETWORK TEST: WITH THE INTEGRATED ETHERNET INTERFACE CHIP. IT IS USED TO TEST VARIOUS NETWORK FEATURES INCLUDING PING AND CONNECTIVITY TESTS LIKE - PPPOE DIAL, DHCP TEST, ARP TEST, WEB TEST AND SO ON. TO DETERMINE THE NETWORK FAULTS.
INTERNET SPEED TEST: MEASURE THE NETWORK DOWNLOAD SPEED AND WEBSITE RESPONSE/ DELAY SPEED
LINE TEST: MEASURE THE LOOP RESISTANCE AND UNBALANCE RESISTANCE OF NETWORK CABLES (CAT5, CAQT5E/ CAT6/ CAT7), AND THE LOOP RESISTANCE OF COAXIAL CABLE, OTHER CABLES & WIRES, TO JUDGE THE FAULTS CONDITION OF ALL PHYSICAL CONNECTIONS. LINE SEARCH: SEARCH THE SPECIFIED CABLES & WIRES BY SENDING AND RECEIVING SIGNALS (AUDIO & ULTRA AUDIO).
| FUNCTIONS | PARAMETERS | |
| Laser Tube | LD | |
| Detecting Diode | APD | |
| Measurement Resolution | 0.6m | |
| QTDR | Evert Dead Zone | 15m |
| Live Fiber Testing of FTTx/CATV/Telecom | Attenuation Dead Zone | 20m |
| Working on | Test Pulse Width | |
| 1310/1490/1550nm | Dynamic Range | 18 dB @ 1610 mm |
| Measurement Length (Event) | 50km | |
| Measurement Length (Attenuation) | 30km | |
| Measurement Range | 5-200m | |
| LTDR | Pulse Amplitude | 10v |
| Pulse Width | ||
| Measurement Resolution | 0.6m | |
| Wavelength Range (nm) | 800-1600 | |
| Probe Type | InGaAs | |
| Power Measurement(d8m) | -50 TO +26 DB | |
| Optical Power Meter | Uncertainty | 3% |
| Display Resdution | 0.1dBm | |
| Fiber Category | Single Mode | |
| Connector | SC/APC | |
| Wavelength Range (nm) | 1310nm &1277nm | |
| PON Power Meter | Measurement Range | 40+6d8m |
| Inst Loss | Loss than 1dB | |
| Uncertainty | * 1dBm | |
| Operation Wavelength (nm) | 650nm | |
| Light Emiting device | FPL.D | |
| Visual Fault Locator | Output Power (mw) | 5mw |
| Modulation | OHz.1Hz.2Hz | |
| Fiber Category | Single Mode | |
| Connector | SC | |
| Download Speed | 1000M | |
| Ping Test | groups or setting | |
| Network Test | Ppppe Cal | 6 groups or setting |
| DHCP Detect | Display P and Gateway | |
| WEB Test | Display WEB interface | |
| 4 Groups Loop Resistance | 1-80000 | |
| Line Test | Groups Unbalanced Resistance | 1-10000 |
| Uncertainty | 5% | |
| Audio Hunt | 800/1600HZ-10vpp | |
| Line Search | tra Audic Hunt | 400KHz maulation800/1800HZ-10vpp |
| Power Supply | Lihium/4000MAH | |
| Power Adapter | MicrUSb 5W1000mA | |
| Single-Phase Maximum Current | 200mA | |
| Others | Standby Power | H2uA |
| Battery Operating Time | 101 | |
| Auto-off Time (min) | Adjustable | |
| Working Temperature (°C) | -10-+50 | |
| Storage Temperature (°C) | -25-+70 |
