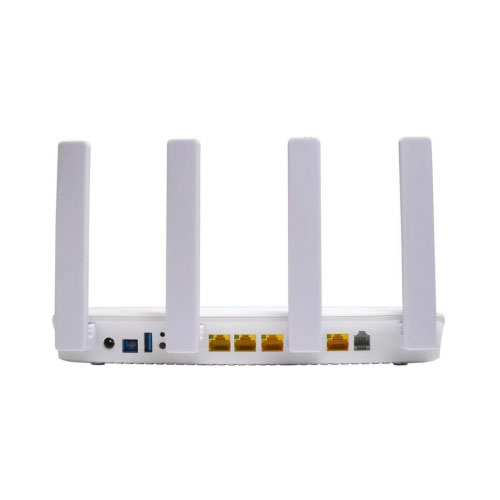

SY - GPON - AX1500 WiFi6 ONT
Introduction:
Technical parameters
SY-GPON-4010-AX1500 is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.
The ONT is based on high-performance chip solutions, supports XPON dual-mode technology (EPON and GPON), and also supports IEEE802.11b/g/n/ac/ax WiFi 6 technology and other Layer 2/Layer 3 functions, providing data service for carrier-grade FTTH applications.
The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It conforms to a series of international technical standards such as IEEE802.3ah and ITU-T G.984
Hadware Parameter
| Dimension | 205mmx140mmx37mm(LxWxH) |
| Net weight | 0.34Kg |
| Operating condition | Operating temp:0 - +55°C |
| Operating humidity:5 - 90% (non-condensed) | |
| Storing condition | Storing temp: -30 - +60°C |
| Storing humidity: 5 - 90% (non-condensed) | |
| Power adapter | DC 12V, 1.5A, external AC-DC Power adaptor |
| Power supply | <18W |
| Interface | 1XPON+4GE+1POTS+USB3.0+WiFie |
| Indicators | PWR,PON,LOS,WAN,WiFi,FXS, |
| ETH1-4,WPS,USB |
Interface Parameter
| PON | 1XPON port(EPON PX20+ and GPON Class B+) |
| Interface | SC single mode, SC/UPC connector |
| TX optical power : 0~+4dBm | |
| RX sensitivity : -27dBm | |
| Overload optical power : -3dBm(EPON) or -8dBm(GPON) | |
| Transmission distance : 20KM | |
| Wavelength : TX 1310nm, RX1490nm | |
| User interface | 4×GE, Auto-negotiation, RJ45 ports |
| 1×POTS RJ11 Connector | |
| Antenna | 4 x5dBi external antennas |
| USB | 1xUSB 3.0 for Shared Storage/Printer |
Function Data
| O&M | WEB/TELNET/OAM/OMCI/TR069 |
| Internet connection | Support Routing Mode |
| Multicast | IGMP v1/v2/v3, IGMP snooping |
| MLD v1/v2 snooping | |
| VolP | SIP and IMS SIP |
| G.711a/G.711u/G.722/G.729 Codec | |
| Echo cancellation,VAD/CNG,DTMF Relay | |
| T.30/T.38 FAX | |
| Caller Identification/Call Waiting/Call Forwarding/Cal Transfer/Call | |
| Hold/3-way | |
| Conference Line testing according to GR-909 | |
| WIFI | Wi-Fi 6: 802.11a/n/ac/ax 5GHz& 802.11g/b/n 2.4GHz |
| WiFi ncryption:WEP-64/WEP-128/WPA/WPA2/WPA3 | |
| Support OFDMA MU-MIMO, Dynamic QoS, 1024-QAM | |
| L2 | 802.1D&802. 1ad bridge, 802.1p Cos,802.1Q VLAN |
| L3 | IPv4/IPv6, DHCP Client/Server,PPPoE NAT, DMZ, DDNS |
| Firewall | Anti-DDOS, Filtering Based on ACL/MAC/URL |
Orderingn Information
| Product Name | Product Description | Accessories |
| SY-GPON-4010-AX1500 | 1XPON+4GE+1POTS+WiFi6 | AC-DC power adaptor : DC12V/1.5A |
