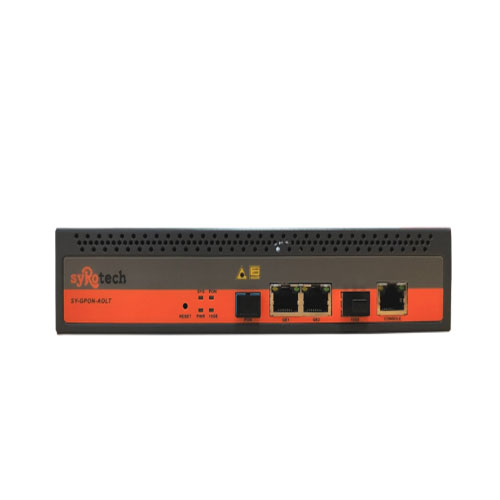

SY - GPON -AOLT
Introduction:
Technical parameters
SY-GPON-AOLT is a box-type GPON OLT with one PON port. The price of SY-GPON-AOLT is very attractive and the performance
is very strong. The splitting ratio of its PON port is 1:128, and the farthest transmission distance is 20KM. Its uplink and downlink bandwidth is as high as: 1.25Gbps/2.5Gbps.SY-GPON-AOLT can be widely used in FTTH, SOHO, small business office and other application scenarios.
Techinical Specification :
| Item | SY-GPON-AOLT | |
| Chassis | Rack | 1U |
| QTY | 3 | |
| Uplink Port | RJ45(GE) | 2 |
| SFP(GE)/SFP+(10GE) | 1 | |
| QTY | 1 | |
| Fiber Type | 9/125um SM | |
| Connector | SC/UPC, Class C++ | |
| GPON Port Specification | GPON port speed | Upstream 1.244Gbps, Downstream 2.488Gbps |
| Wavelength | TX 1490nm, RX 1310nm | |
| Max splitting ratio | 1:128 | |
| Transmission Distance | 20KM | |
| Management Ports | 1*CONSOLE port | |
| Backplane Bandwidth (Gbps) | 16 | |
| Port Forwarding Rate(Mpps) | 23.808 | |
| Management Mode | Console/WEB/Telnet/CLI | |
| Lightning protection level | Memory | 512M RAM/256 Flash |
Management Function:
• Telnet, CLI,WEB;
• Port Status monitoring and configuration management
• Online ONTconfiguration and management
• User management
• Alarm management
Layer2 Switch:
1K Mac address
Support 4096 VLANs • Support port VLAN
Support VLAN tag/Un-tag, VLAN transparent transmission
Support storm control based on port
Support port isolation
Support port rate limitation
Support 802.1D and 802.1W Access control list
IEEE802.x flowcontrol
Port stability statistic and monitoring
GPON Function:
Tcont DBA Gemport traffic
In compliant with ITU-T984.x standard
Up to 20KM transmission Distance
Support data encryption, multi-cast, port VLAN, separation, etc
Support ONT auto-discovery/link detection/remote upgrade of software
Support VLAN division and user separation to avoid broadcast storm
Support power-off alarm function, easy for link problem detection
Support broadcasting storm resistance function
Weight :
. Net Weight : 1.07Kg
Power adapter :
. DC 12V/2.5A
. AC 85 - 264 , 47 / Hz ( Optional )
Technical Parameter :
Working Temperature• 0°C~+55°C
Storage Temperature.• -40~+85°C
Relative Humidity ⚫10-85% (non-condensing)
Dimension (L*W*H)• 224mm*199mm*43.6mm
| Product Name | Description | Power Configuration | Accessories |
| SY-GPON-AOLT | 1*GPON 2*RJ45+1*SFP/SFP+ | 1*DC(Optional) 1*AC(Optional) | 1G SFP module 10G SFP+ module |
