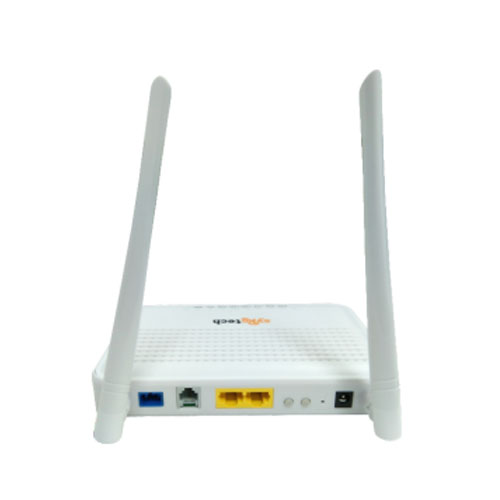

SY-GPON-1111-WDONT 1GE+1FE+1POT+CATV+WIFI
Technical Specifications:
Power adopter input:220V AC,50HZ
Ambient teperature: -5 ~ +55°C Ambient humidity:10% ~ 90% (non-condensing)
Store temperature: -30 ~ +60°CStore humidity:10% ~ 90%(non-condensing) For other technical
specifications, see the following table
Technical parameters
Technical Specifications:
| Parameter Name | Hardware Parameter |
| PON | GPON, SC single-mode/single-fiber, |
| Upstream 1.25Gbps, Downstream 2.5Gbps. | |
| PON Port Type | BOSA |
| Wavelength | Tx 1310nm, Rx 1490nm, CATV 1550nm |
| Sensitivity | <-27dBm(PX20+) |
| Overload | > -3dBm(PX20+) |
| Optical Type | SC/APC |
| LAN Interface | 1*10/100/1000Mbps + 1*10/100Mbps + |
| Auto adaptive Ethernet interfaces, Full/Half Duplex, Rj45 | |
| connector | |
| RF (CATV) Interface | 1 CATV F connector |
| POTS Interface | 1POTS, RJ11 connector |
| Indicators | 8, For POWER, LOS, REG, GE, FE, FXS, CATV, WiFi |
| Power adapter input | 220V AC,50HZ |
| Ambient temperature | -20 +55°C |
| Ambient humidity | 10% - 90%(non-condensing) |
| Store temperature | -30 +60°C |
| Store humidity | 10% - 90%(non-condensing) |
| Dimension (LxW X H) | 185mmx122mmx33mm |
| Power | 12V, 1.5A |
| Power Consumption | <10W |
| Weight No Power Adapter | About 300g |
Technical Specifications:
| Functions | Parameter |
| Internet connection | Bridge / Routing |
| LAN | Support Port rate limiting |
| Support Loop detection | |
| Support Flow control | |
| Support Storm control | |
| VLAN | Support VLAN tag mode |
| Support VLAN transparent mode | |
| Support VLAN trunk mode | |
| Support VLAN translation mode | |
| Support VLAN QinQ mode | |
| Multicast | Support IGMPv1/v2/v3 |
| Support IGMP Proxy and MLD Proxy | |
| Support IGMP Snooping and MLD Snooping | |
| and MLD Snooping |
LED Indicators:
| Security | Support Firewall |
| Support Mac filter | |
| Support ACL | |
| Support URL filter | |
| Internet connection | Bridge / Routing |
| QoS | Support 4 queues |
| Support SP and WRR | |
| Support 802.1P | |
| Support DSCP | |
| Wireless | Support 802.11b/g/n and Mixed mode |
| Support No-auth,WEP,WPA-PSK and WPA2- | |
| PSK function with AES,TKIP encryption | |
| VolP | Support SIP protocol |
| Support Voice coding: ITU-T | |
| G.711/G.723/G.726/G.729 | |
| Support Echo cancellation | |
| Support high/low speed fax/Modem, bypass fax, and T38 fax | |
| Support InBand / RFC2833/SIP INFO, MD5 authentication, call | |
| forward, call waiting, hot-line call, and all kinds of value-added | |
| CATV | voice service. Multi-party conferencing |
| Management | Support Line testing according to GR-909 |
| Support local or remote control | |
| Support ITUT984.x OMCI | |
| Support WEB | |
| Support Telnet | |
| Support TR069 |
Ordering Information:
| Model | Description |
| SY-GPON-1111-WDONT | GPON, SC single-mode/single-fiber, |
| Upstream 1.25Gbps, Downstream 2.5Gbps. |
