Overview:
Technical parameters

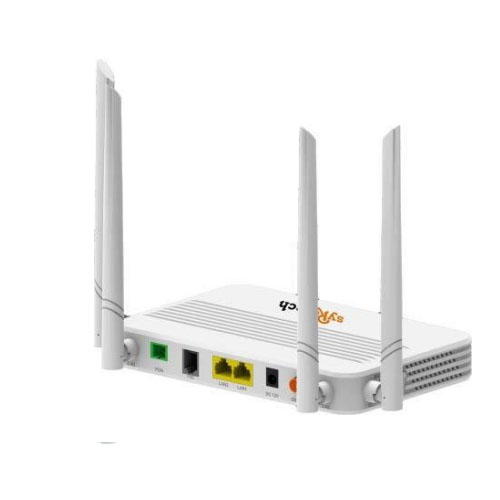

2GE+POTS AC WiFi XPON HGU terminal devices are designed for fulfilling FTTH and triple play service demand of
fixed network operators. These boxes are based on the mature Chipset (Realtek) technology, which have high raƟ o
of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3,. They are highly reliable and
easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulaƟons
such as IEEE802.3ah ITU-T G.984.x and technical requirement of GPON Equipment
| Indicators | Status | Descrip on |
| POWER | Light of | ONU no power supply |
Hardware features:
| PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Wavelength:Tx1310nm,Rx 1490nm SC/UPC connector Receiving saturaƟon :≥-8dBm Receiving sensiƟvity: ≤*-28dBm Transmiƫng opƟcal power: 0~+4dBm Transmission distance: 20KM |
| LAN interface | 2×10/100/1000Mbps auto adapƟve Ethernet interfaces. Full/Half, RJ45 connector |
| Wireless | Compliant with IEEE802.11b/g/n/ac 2.4GHz Opera ng frequency: 2.400-2.483GHz 5.0GHz Opera ng frequency: 5.150-5.825GHz Support MIMO, 2T2R,5dBi external antenna, rate up to 1.167Gbps Support: mul ple SSID TX power: 11n--22dBm/11ac--24dBm |
| POTSinterface | 1×FXS, RJ11 connector Support: G.711/G.723/G.726/G.729 codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay Line tesƟng according to GR-909 |
| LED | 12, For Status of PWR,PON ,LOS,WAN,WiFi,FXS,ETH1~4,WPS . |
| OperaƟng condiƟon | Temperature: 0℃～+50℃ Humidity: 5%～90（noncondensing） |
| Storing condiƟon | Temperature : -30℃～+75℃ Humidity :5%～90%（non-condensing） |
| Power supply | DC 12V,1/1.5A |
| Power consumpƟon | ≤10W |
| Dimension | 205mm×140mm×37mm（L×W×H） |
| Net weight | 0.34Kg |
| LED Indicators of Device | ||
| PON | Light on | ONU link acƟve |
| Flash | ONU manage to link | |
| Light off | ONU receiving power rate lower than optical receiver sensitivity | |
| Blink | Device does not receive optical signals. | |
| LOS | off | Device has received optical signal. |
| ON | WiFi turn on | |
| 2.4G | OFF | Device is power off or WiFi turn off |
| Blink | WiFi turn on and with ongoing data transmission | |
| ON | WiFi turn on | |
| 5G | OFF | Device is power off or WiFi turn off |
| Blink | WiFi turn on and with ongoing data transmission | |
| On | Internet is effective. | |
| INTERNET | Off | Internet is ineffective. |
| Light on | Network port linked, but no data transmitting | |
| ETH1 & 2 | Flash | Network port data pass |
| Light off | ONU no power supply or internet cable unlink | |
| POTS | On | Device has registered to the soft-switch, but without ongoing data transmission. |
| Off | Device is power off or not registered to the soft-switch. | |
| Blink | Phone hooks off or the port is with ongoing data transmission. |
Technical Specifications
3.1 Physical structure, Environment and Electrical parameter
| Parameter | Nominal |
| Dimension | 178mmx120mmx30m(LxWxH) |
| Net weight | 0.24kg |
| Typical power consumption | <10W |
| Noise | None |
| Cooling style | Naturally cooling |
| Power supply | 12V DC/1A (By external AC/DC adapter) |
| Installation style | Support PC, wall mount or put inside of information box. |
| Environment | 0~45deg |
| Atmospheric pressure | 70~106Kpa |
| MTBF | 50,000hours |
| MTTR | 30minutes |
| Parameter | Nominal |
GPON Interface Specifications:
Table 3-2 GPON Interface
| Parameter | Nominal |
| Connector style | SC/UPC |
| PON quanƟty | 1 |
| Fiber style | Single mode |
| Wavelength | TX：1310 +/-20nm RX：1490 +/-10nm |
| PON interface standard | ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+ |
| PON interface receiving rate | 1.244Gpbs |
| PON interface transmiƫng rate | 2.488Gpbs |
| Output opƟcal power | Min: 0dBm Max: +5dBm |
| OpƟcal receiver sensiƟvity | Precede -28dBm |
| The length of the opƟcal link | Max 20km |
WiFi Specifica ons:
Table 3-3 WIFI SpecificaƟons
Standard | IEEE 1802.11ac/b/g/n | |
| Frequency | 2.4~2.4835GHz 5GHz : Low frequency 5.15GHz~5.25GHz. Middle frequency 5.25GHz~5.35GHzJ High frequency 5.725GHz~5.825GHz | |
| WiFi | 2.4GHz Frequency: IEEE 802.11b : 11/5.5/2/1M(Auto) IEEE 802.11g : 54/48/36/24/18/12/9/6(Auto) IEEE 802.11n : 270/243/216/162/108/81/54/27Mbps,up to 300Mbps | |
| Parameter | Transmission speed | 5GHz Frequency: IEEE 802.11ac : Highest transmission speed up to 867Mbps |
| Channel number | 2.4GHz : 13 5GHz : 4 | |
| Spread-spectrum Technique | DSSS(Direct sequence spread spectrum) |
| Data Modula on | DBPSK, DQPSK, CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM) | |
| Sensitivity @PER (Package error rate) | 270M : -68dBm@10% PER : 130M : -68dBm@10% PER : 108M : -68dBm@10% PER : 54M : -68dBm@10% PER 11M : -85dBm@8% PER : 6M : -88dBm@10% PER 1M : -90dBm@8% PER : | |
| RF power | 20dBm EIRP | |
| Antenna | 5dBi Antennas |
Software Function :
Support rich QinQ VLAN functions and IGMP Snooping multicast features
Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset
Support 802.11n/ac WiFi (2T2R) func on
Support NAT, Firewall function
Support IPv4 and IPv6 dual stack
Full speed non-blocking switching
2K MAC address table
64 full range VLAN ID
Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc
Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
Support auto polarity detec on of Ethernet ports (AUTO MDIX)
Integrated IEEE802.1p QoS with four level priority queues
Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
Support bridge, router and bridge/router mixed mode
Support TR-069 protocol Caller ID, Call Waiting, Call Forwarding, Call Transfer, Three Way -Calling/Conferencing, Distinctive Ringing
