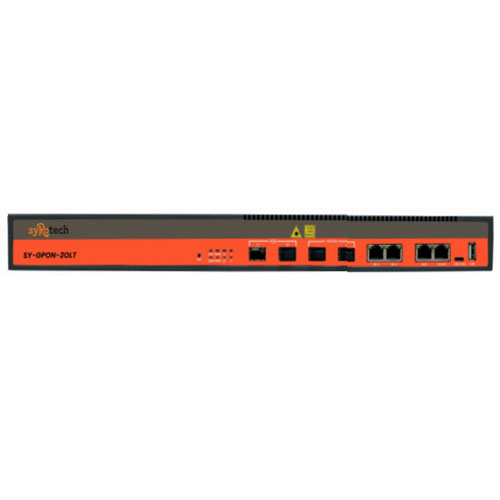

TWO PORT GPON OLT SY-GPON-2OLT
OVERVIEW:
The Syrotech Networks GPON 2 Port OLT products are 1U height 19 inch rack mount products. T he features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. T he OLTs can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN and ICT applications
Technical parameters
FEATURES:
Meet ITU-T G984/G.988 standards
Friendly EMS/Web/Telnet/CLI management
CLI command style similar to mainstream manufacturers Open to any brand of ONT
1U height compact design A dopt mainstream chipset
TECHNICAL SPECIFICATIONS
| Item | ||
| Chassis | Rack | 10 19lnch Standard Box |
| Uplink Port | QTY | 4 |
| RJ45(GE) | 2 | |
| SFP(GE)/SFP+(10GE | 2 | |
| GPON Port | QTY | 2 |
| Physical Interface | SFP Slots I | |
| Supported PON module level | Class C++/Class C++ +/Class C++++ | |
| Max splitting ratio | 1:128 | |
| Management Ports | 1*10/100/1000BASE-1 out-band | port, 1'CONSOLE port, 1*USB-COM 1*USB2.0 |
| Backplane Bandwidth (Gbps) | 208 | |
| Port Forwarding Rate(Mpps) | 40.176 | |
| PON Port Specification (Class C+++) | Transmission Distance | 20KM |
| PON port speed | Upstream 1.244Gbps Downstream 2.488Gbps | |
| Wavelength | TX 1310nm, RX 1490nm | |
| Connector | SC/UPC | |
| Fiber Type | 9/125u SMF | |
| TX Power | +4.5~+10dBm | |
| Rx Sensitivity | < -30dBm | |
| Saturation Optical Power | : 12dBm | |
| Management Mode | WEB Telnet CLI |
OTHER SPECIFICATIONS
| Management Function | SNMPTelnet,CLI,WEB,SSH v2; |
| Fan Group Control | |
| Port Status monitoring and configuration management | |
| Online ONT configuration and management | |
| User management | |
| Alarm management |
| Layer2 Switch | 16K Mac address |
| Support 4096 VLANs | |
| Support port VLAN | |
| Support VLAN tag/Un-tag, VLAN transparent transmission | |
| Support VLAN translation and QinQ | |
| Support storm control based on port | |
| Support port isolation | |
| Support port rate limitation | |
| Support 802.1D and 802.1W | |
| Support static LACP,Dynamic LACP | |
| QoS based on port, VID, T OS and MAC address | |
| Access control list | |
| EEE802.x flowcontrol | |
| Port stability statistic and monitoring |
| Multicast | IGMP snooping |
| 1K L2 Multicast Groups | |
| Profile Management | |
| ONT auto discovery | |
| ONU Management | Auto configure I |
| Auto upgrade | |
| Remove Config | |
| 1K L3 Multicast Groups; | |
| DHCP | DHCP server DHCP relay,DHCP snooping |
| DRCP option82 | |
| ARP proxy | |
| 16K hardware Host Routes 1024 hardware Subnet Routes | |
| Layer 3 Route | Support static route |
| Support Radius Tacacs+ | |
| Support static route dynamic route RIP v1/v2,RlPng and OS | |
| Support NDP | |
| lpv6 | Support IPv6 Ping] v6 Telnet IPv6 routing |
| Support ACD based on source IPv6 address, destination IPv6 address. L4 port, protocol Type, etc | |
| Support MLD V1/v2 snooping (Multicast Listener Discovery snooping |
| GPON Function | Tcont DBA |
| Gemport traffic | |
| In compliant with ITU-T G.984 | |
| Up to 20KM transmission Distance | |
| Support data encryption, multi-cast, port VLAN, separation, RSTP, etc | |
| Support ONT auto-discovery/link detection/remote upgrade of software | |
| Support VLAN division and user separation to avoid broadcast storm | |
| Support power-off alarm function, easy for link problem detection | |
| Support broadcasting storm resistance function | |
| Support port isolation between different ports | |
| Support ACL to configure data packet filter flexibly | |
| Specialized design for system breakdown prevention to maintain stable system |
| Dimension (L*W*H) | 442mm*200mm*43.6mm |
| Weight | Net weight of single power: 2.485kg |
| Power Consumption | 35W |
| Working Temperature | -20°C ~+60°C |
| Storage Temperature | -40~+70°C |
| Relative Humidity | 5~95% (non-condensing) |
