UB5021GV X 1GE + 1FE + 1POTS
Product Description

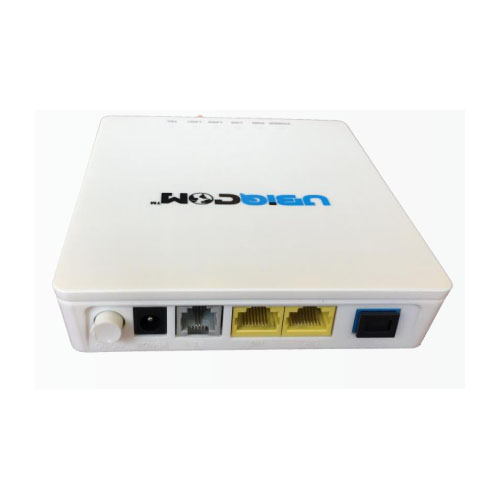

The UBIQCOM UB5021GV, an optical network terminal (ONT), is a high-end home in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The UB5021GV provides one POTS ports, one GE Internet port and one FE Internet port. The UB5021GV features high-performance forwarding capabilities to ensure an excellent experience with VoIP, Internet and HD video services.
Technical parameters
Product Features
UBIQCOM XPON ONT UB5021GV Optical Network Terminal
XPON ONT, 1*GE+1*FE, With Voice
ENG firmware, ENG interface
Connector type SC/UPC
Can be configured by OLT or Web or NMS
Suitable for home and SOHO users
PRODUCT FEATURES AND SPECIFICATIONS
UB5021GV XPON Optical Network Terminal (ONT)
| GPON Port | Class B+ Receiver sensitivity: -27dBm Wavelengths: US 1310 nm, DS 1490 nm Wavelength blocking filter (WBF) Flexible mapping between GEM Port and TCONT GPON: consistent with the SN or password authentication defined in G.984.3 Bi-directional FEC SR-DBA and NSR-DBA |
| Ethernet Port | Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning Transparent transmission of IPv6 packets at Layer 2 |
| POTS Port | 1*RJ11 G.711A/μ, G.729a/b, and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (with the SIP protocol) |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Pressure environment: 0 to 106 kPa | |
| Power consumption | Static power: 2 W |
| Maximum power consumption: 2.5 W | |
| Power specifications | Power adapter input: 100 to 240 V AC, 50–60 Hz |
| System power supply: 11–14 VDC, 0.5 A | |
| Dimensions (length x width x height) | 82 mm x 90 mm x 27 mm |
| Weight | About 0.5 Kg |
