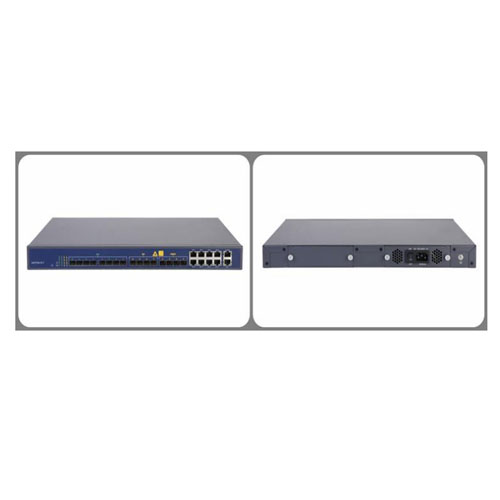

UNIWAY GPON OLT
DISCRIPTION
UNIWAY GPON OLT products are 1U height 19 inch rack mount products. The features of the OLT are small, convenient, flexible, easy to deploy, high performance and have layer3 features. It is appropriate to be deployed in compact room environment. The OLTs can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN and ICT applications.
Technical parameters
SPECIAL FEATURES
► Plug and play, features auto-detecting, performing layer3 functions, auto-configuration, and auto firmware upgrade, etc.
► Integrated OAM remote configuration and maintenance function.
► Support rich QinQ VLAN functions and IGMP Snooping multicast features.
► Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
► Support 802.11n WiFi(2T2R) function.
► Support NAT, Firewall function.
► Support IPv4 and IPv6 dual stack.
► Integrated line testing compliant with GR-909 on POTS.
TECHNICAL PARAMETERS
| Item | ||
| Chassis | Rack | 1U 19 inch standard box |
| QTY | 16 | |
| 1000M | Copper | 8*10/100/1000M auto-negotiation |
| Uplink Port | SFP(SFP+) (independent) | 6*SFP and 2SFP+ slots (SFP+ is 10GE port) |
| QTY | 8 | |
| GPON Port | Physical Interface | SFP Slots |
| Connector Type | Class B+/C+ | |
| Max splitting ratio | 1:128 | |
| Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port | |
| Transmission Distance | 20KM | |
| GPON port speed | Upstream 1.244G, Downstream 2.488G | |
| PON Port Specification | Wavelength | TX 1490nm, RX 1310nm |
| Connector | SC/PC | |
| Fiber Type | 9/125um SMF |
| TX Power | +1-+5dBm |
| Rx Sensitivity | -28dBm | |
| Saturation Optical Power | -&dBm | |
| Management Mode | SNMP, Telna,CLI,WEB | |
| Management Function | Fan Group Detecting; Port Status monitoring and configuration management; configuration such as VLAN, Trunk,RSTPJGMP,QOS etc; EPON management function: BA,ONU authorization ACL,QOS,etc, Online ONU configuration and management; User management; Alarm management | |
| Layer3 features | 16K Mac address: Support port VLAN and protocol VLAN; Support 4096 VLANs, Support VLAN tag/Un-tag VLAN transparent transmission, QinQ; Support storm control based on port; Support port isolation; Support portrat limitation; Support 802. ID and 802.1W; Support static LACP. QOS based on port, VID, TOS and MAC address Access controllist IEEE802.x flow control Arp proxy, Static route; 512 hardware Subnet Routes; 1024 hardware Host Routes; Port stability statistic and monitoring | |
| Multicast DHCP | IGMP snooping; 256 IP Multicast Groups, DHCP server; DHCP rday; DHCP snooping | |
| GPON Function | Tcont dbs Gemport traffic; In compliant with ITUT984 Lxstandard; Up to 20KM transmission Distancee; Support data encryption, multi-cast, port VLAN, separation,RSTP,etc; Support ONU auto-discovery/link detection/remote upgrade of software; Support layer3 features Support VLAN division and user separation to avoid broadcast storm; Support power-off alarm function,easy for link problem detection; Support broadcasting storm resistance function; Support port isolation between different ports; Support ACL and SNMP to configure data packet filter flexibly; Specialized design for system breakdown prevention to |
| maintain stable system; Support dynamic distance calculation on EMS online; Support RSTP,IGMP Proxy. | ||
| Dimension(L*W*H | 442mm*320mm*43.6mm | |
| Weight | 3.1kg | |
| Power Supply | 220VAC | AC:90~264V, 47/63Hz; Double Power Module/Hot Backup |
| Power Consumption | 25W | |
| Working Temperature | -10~+55°C | |
| Environment | Storage Temperature | -40~+85°C |
| Operating | Relative Humidity | 5~90%(non-conditioning) |
