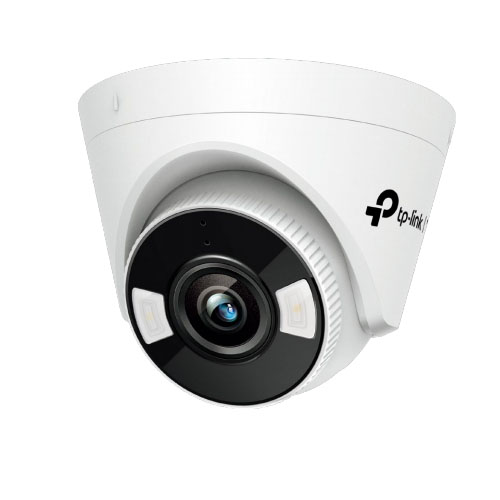

Wi-Fi Turret Network Camera MODEL: VIGI C440-W
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
Technical parameters
VIGI Surveillance Solution
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business that you've worked hard to build—whenever, wherever.
Outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound
Flexible Installatio
Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.
Specifications
| Image | |
| Max. Resolution | 4MP |
| Main Stream | Frame Rate: 1fps, 5fps. 10fps, 15fps. 20fps, 25fps, 30fps Resolution 2560x1440, 2304x1 296, 2048x1280 1920x1080 |
| Sub-Stream | Frame Rate: 1fps, 5fps. 10fps, 15fps, 20fps, 25fps, 30fps Resolution 640x480, 352x288 320x240 |
| Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure WDR, White Balance Adjustable by Client Software |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Network | |
| Protocols | TCP/IP. UDP. ICMP. HTTP. HTTPS, DHCP. DNS, RTSP. NTP. UPnP UDP,SSL/TLS |
| General Function | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| API | ONVIF |
| Security | Password Protection HTTPS Encryption,IP Address Filter, Digest Authentication |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| User/Host | Up to 21 Users |
| Client | VIGI Security Manager, VIGI app |
| Wireless | |
| Frequency | 24 GHz |
| Wireless Channel | 1-13 |
| Radio Bandwidth | 20M |
| Transmit Power | High |
| Wireless Rate | 11Mbps(802.11b) 54Mbps(802.11g).150Mbps(80211n) |
| Wireless Security | WPA/WPA2-PSK |
| Wireless Mode | APClient |
| Interface | |
| Communication Interface | 1RJ45 10/100M Self-Adaptive Ethernet Port |
| Video Output | No |
| Reset Button | Yes |
| On-board Storage | Built-In Memory Card Sbt, Support MicroSD Card, Up to 256 GB |
| Built-in Speaker | Yes |
| Built-in Microphone | Yes |
| General | |
| Operating Temperature | -30-60 % |
| Power Supply | 12V DC t 5% 5.5mm Coaxial Power Plug |
| Power Consumption | 12V DC:Max 7W |
| Material | Plastic |
| Product Dimensions | 123*123*84mm |
| Certifications | CE, RCM, BSML VCCL RoHS, NCC. JRF F.KC |
